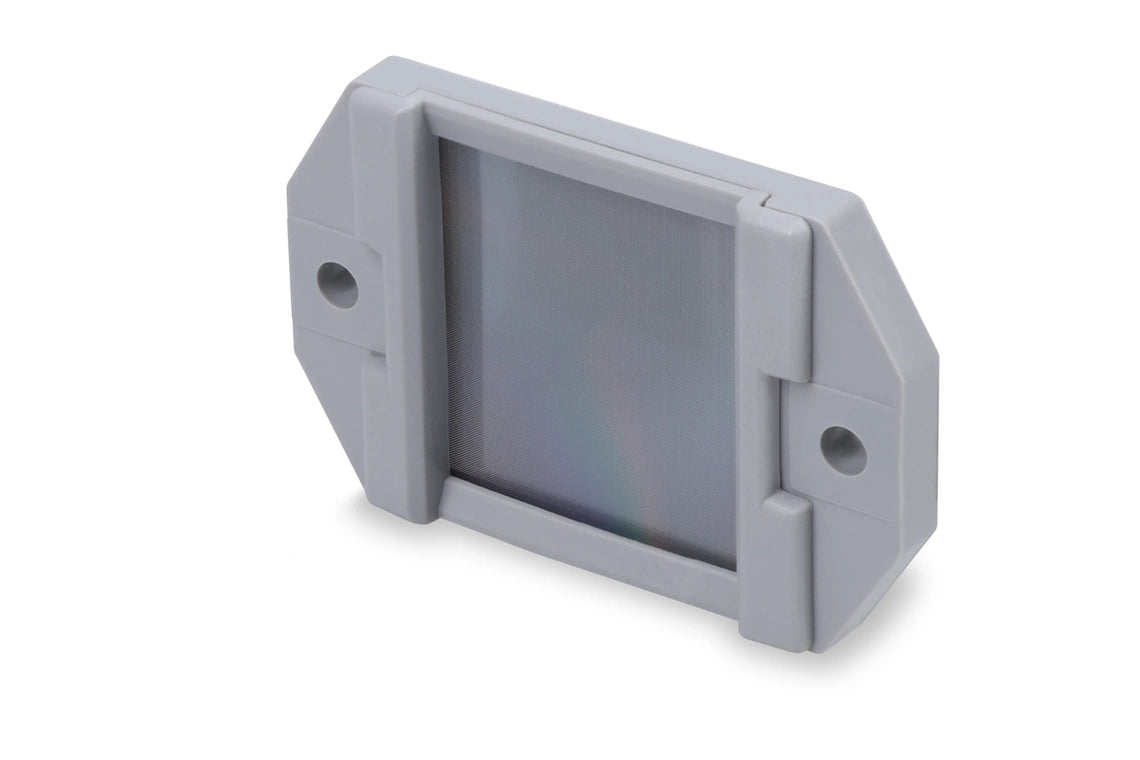

DI-Soric RL 45x30 Sensor accessories

Retro reflective sensors require matching reflectors and reflective films for operation. Reflectors from di-soric are optionally available for laser or LED light sources. Various sizes and specific designs round off the catalog.

• For laser-light
• Heat-resistant up to 70 °C
• Hole Ø3.2 mm (2x)
• Suitable for polarized light

Mounting	2 holes
Area	45 x 30 mm
Height	9.5 mm
Housing length	45 mm
Housing width	30 mm
Design	rectangular
Design	Reflector
Light source	Laser
Ambient temperature during operation	-20 … +70 °C
