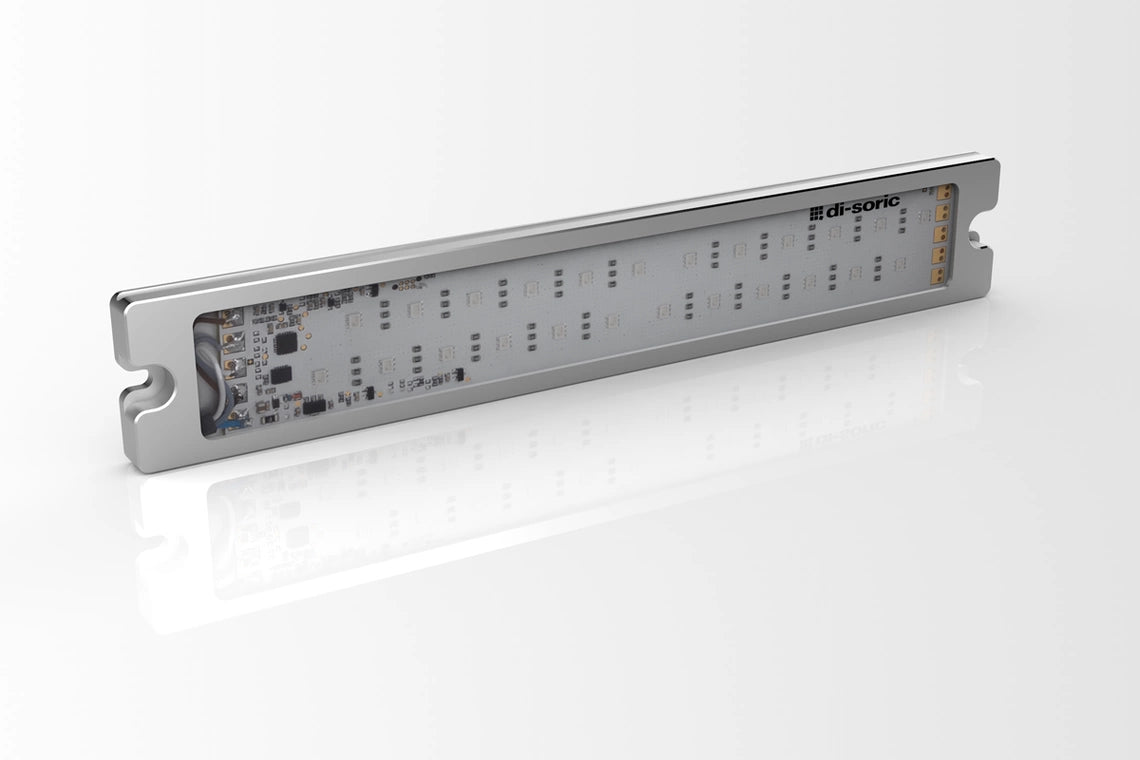

DI-Soric SB-RGB-251-K-B5 Multi-segment IOL signal light

SB-RGB signal lighting with IO-Link are intelligent units that can be adapted to custom requirements. They feature a large RGB illuminated area and display the machine status so that it is visible from far away. They can be configured by means of IO-Link – light functions such as color, brightness and the flashing of individual colors can be freely adjusted. Even without IO-Link configuration, the SB-RGB can be used immediately out-of-the-box thanks to 3 triggerable color presets.

• Three segments: external trigger / segment mode / level mode / demo mode
• Easy operation is also possible without IO-Link
• Freely configurable functions via IO-Link
• Long life thanks to intelligent thermal management
• Large light field for optimal display of the machine status
• High protection type IP 67
• Magnetic holder set available as an option
• Adjustable mounting angle optionally available
• Pluggable diffusion filter optionally available

Service voltage	18 … 30 V DC (Supply Class 2)
Internal power consumption	210 mA (24 V DC)
Power	5.0 W (24 V DC)
Inverse polarity protection	Yes
Illuminated area	220 x 30 mm
Housing length	250 mm
Housing height	10 mm
Housing width	40 mm
Housing material	Aluminum (natural, Anodized)
Material	PU, crystal clear (Window)
Weight	210 g
Protection class	III, operation on protective low voltage
Risk group (DIN EN 62471)	Free group
Approvals	UL
Model	Signal lighting
Product series	SB-RGB
Number of segments (max)	3
Operation modes	External trigger / segment mode / level mode / demo mode, LED operating modes: Static / Blinking / Flashing
Light intensity can be adjusted	10 to 100 %, via IO-Link
Trigger input high level	> 8.0 V
Trigger input low level	< 5.0 V
Trigger input	8 color presets: selectable via trigger 1 + 2 +3
Light source	LED
Color	Red, green, yellow, blue, white, orange, pink, user-defined (IO-Link)
Deflection angle FWHM	120°
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	0 … +50 °C
Protection type	IP 67
Connection	Pigtail, 0.3 m, M12, 5-pin
Connection cable	VK … /5
