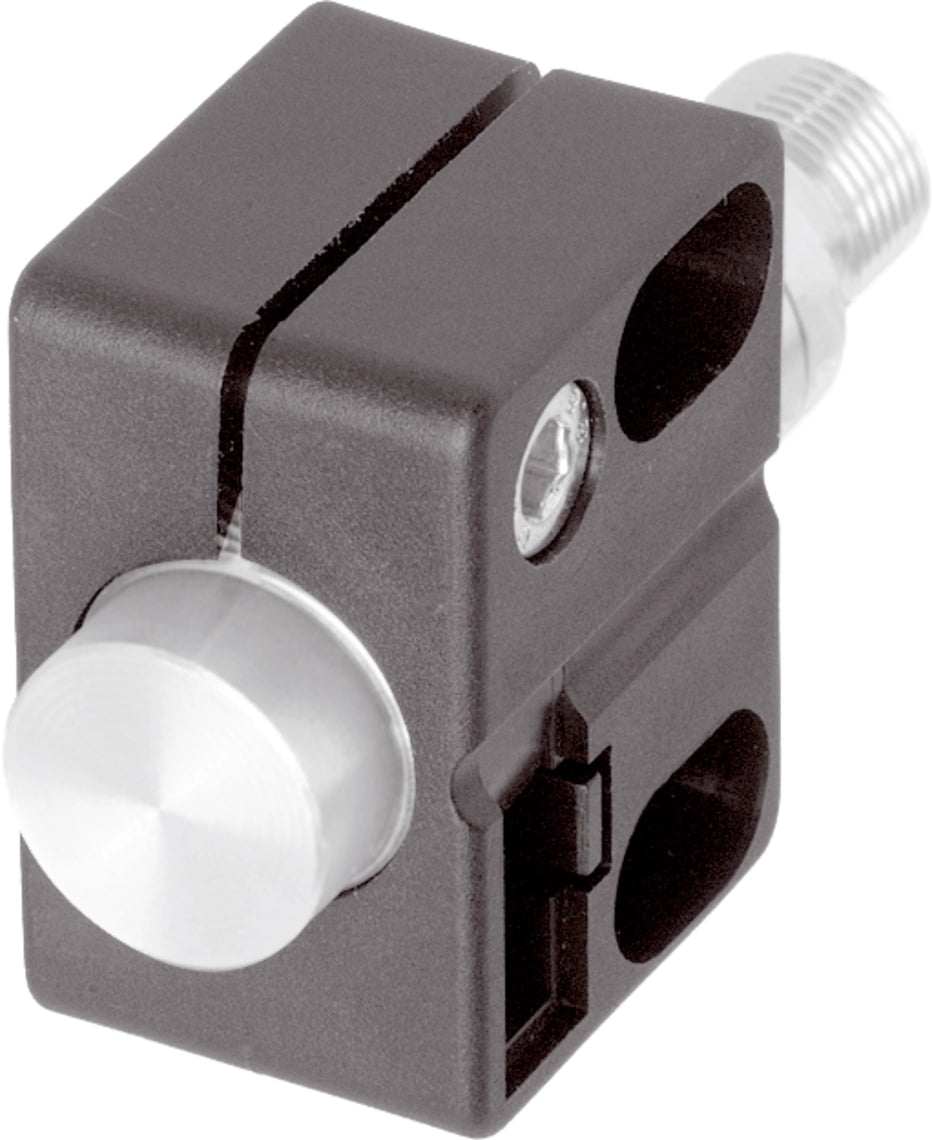

DI-Soric SH 12 Clamping bracket

The product brackets are designed for the assembly of any and all sensors. They stand out for their robust construction and simple and reliable assembly.

• For cylindrical sensors of Ø 12 mm or thread M12
• Quick commissioning
• Reduced assembly / downtime due to one-piece construction
• Sensor replacement without changing the clamp position
• Slots permit clamp adjustment

Hole spacing	28 mm
Mounting	Hole
Housing dimensions	18 x 30 x 40 mm
Clamping diameter	G: 12 mm
Housing material	Plastic (PA, 6 GK)
Component	Sensor holder
Characteristics	without limit stop
To be used for	Sensors Ø 12 mm/ Thread M12
Scope of delivery	Sensor holder
