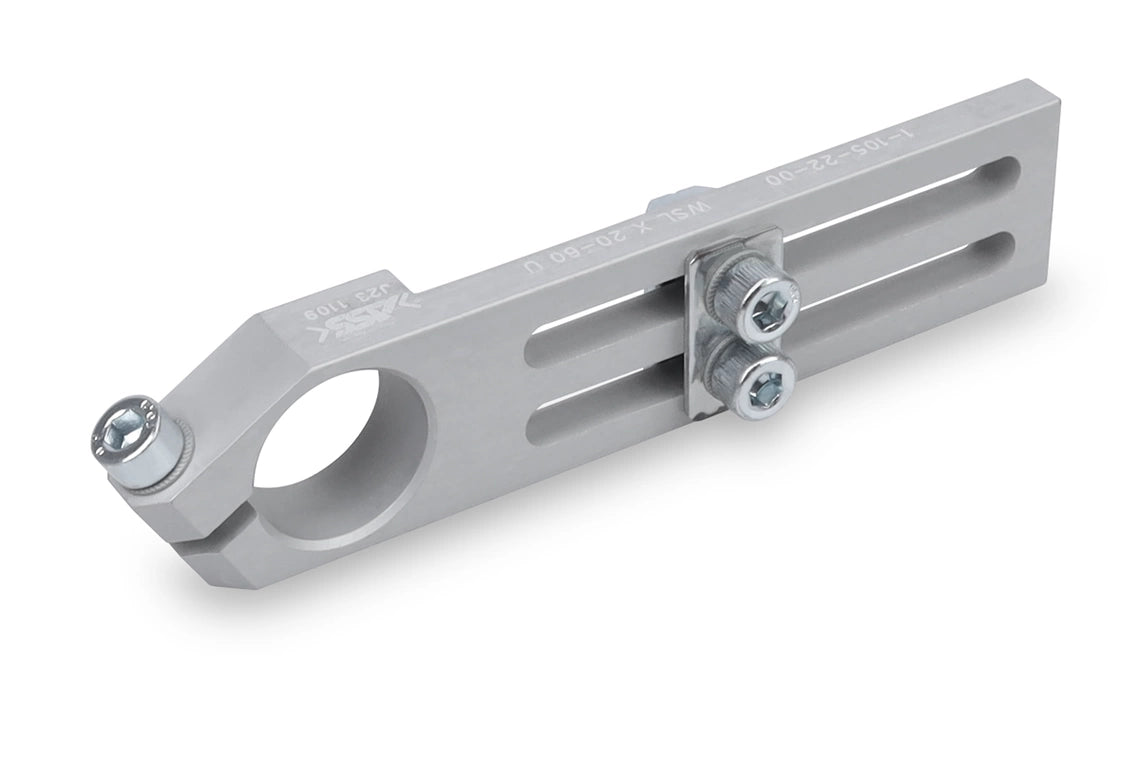

DI-Soric SH-WSL-X-20-60-U Clamping bracket

The comprehensive catalog of assembly systems meets the most common requirements for fixed fastening by means of basic holders, tube, rods, adapter rings, joint arms, angular clamps, and cross connectors.

• Highly flexible versatile mounting system
• Universal mounting
• Stepless adjustment
• Robust design

Diameter	A: 20 mm
Distance dimension	C: 24 mm
Distance dimension	D: 54 mm
Distance dimension	E: 25 mm
Distance dimension	F: 6 mm
Distance dimension	F: 12 mm
Dimension	B: 60 mm
Housing material	Metal
Component	Angle clamp
To be used for	Clamping pin 20 mm
Product series	Z-UBT-KL-MS Assembly system
