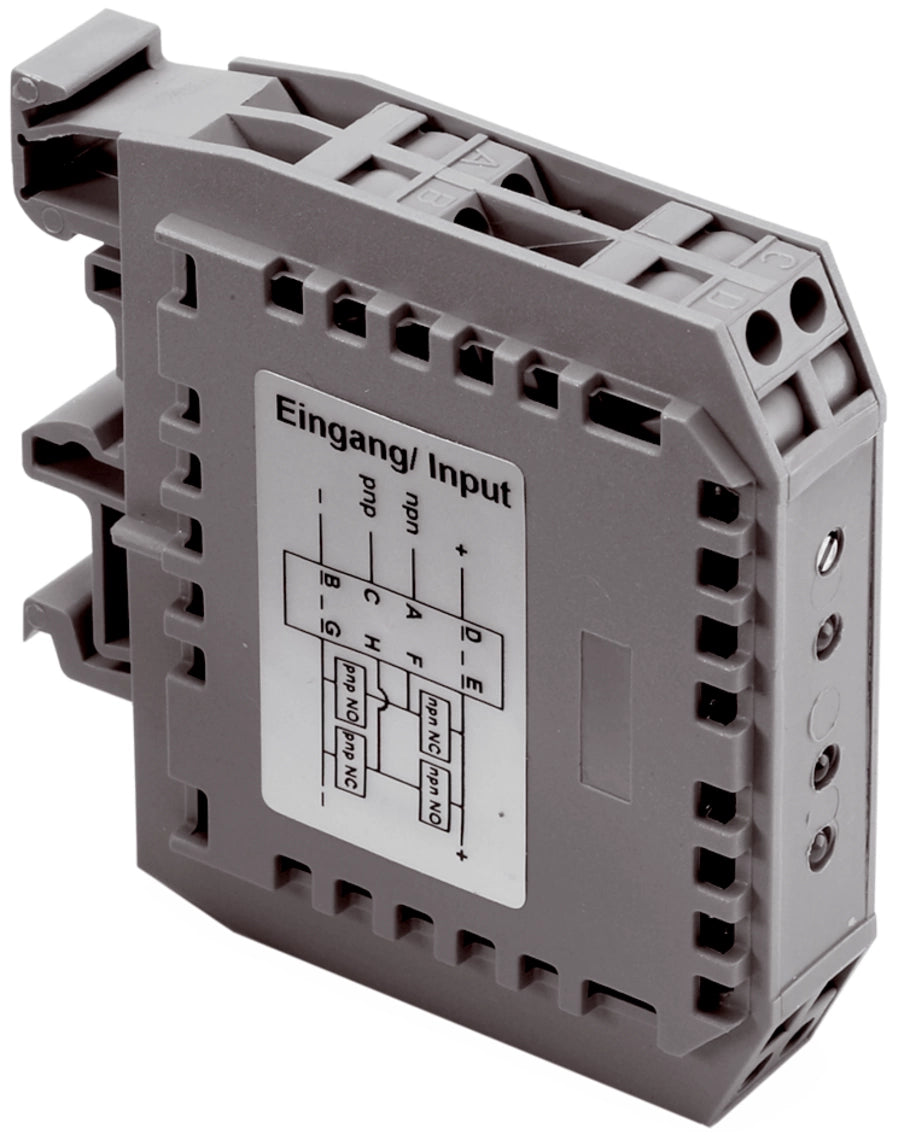

DI-Soric SK-TPN-10, Signal processing, P\n: 201637

Function adapters can change sensor-specific properties to the desired function (e.g. pulse stretching). They are suitable for all conventional sensors, feature a compact design and can be retrofitted quickly and easily.

• Input: pnp and npn
• Output functions: pnp normally open, pnp normally closed, npn normally open, npn normally closed
• Pulse stretching
• Robust housing
• DIN-rail mountable

Service voltage	10 … 30 V DC
No-load current (max.)	22 mA
Short-circuit protection	no
Component	Sensor clamp
Switching output	pnp/npn, 100 mA, NO/NC
Pulse stretching	1000 … 10000 ms
Display	LED green - Service voltage, yellow - pnp opener-NC, Red - pnp closer-NO
Switching frequency	20000 Hz
