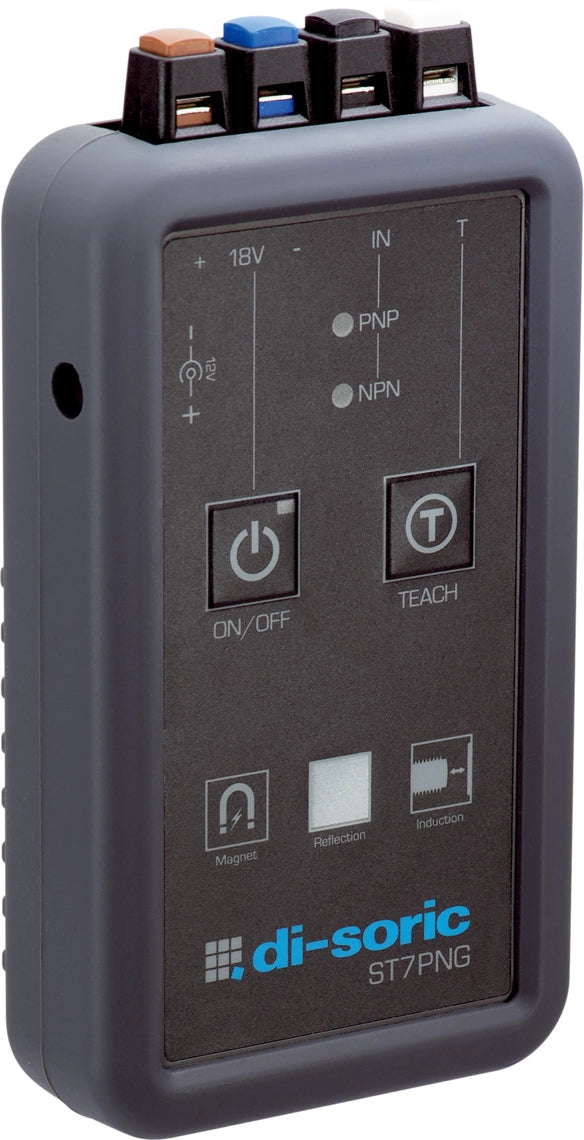

DI-Soric ST 7PNG, Prüf- und Parametriergeräte, P\n: 209540

The sensor tester is used to test the proper functioning of pnp and npn sensors. The output signal is output both optically and acoustically. Quick connect sockets and the internal battery power supply ensure quick, flexible use.

• Teach output for remote teach
• Automatic pnp/ npn/push-pull detection
• Visual and acoustic signal
• Buzzer can be switched off
• Operation via batteries and external power supply
• Quick-action sockets
• Automatic switch-off
• Compact design and low weight
• Shock protection via a silicone casing

No-load current (max.)	40 mA
Current limiting	60 mA in battery operation, 240 mA in operation with external power supply unit
Power supply	1.5 V batteries type AA (3x), External 12 V DC power supply unit (optional)
Housing dimensions	141 x 82 x 34 mm
Housing material	Plastic (ABS, Black)
Material	Silicone (Protective casing)
Component	Sensor testers
To be used for	pnp, npn and push-pull sensors
Application	pnp, npn and push-pull sensors
Output voltage	18 V DC
Display	LED green - Operation, yellow - Switching outputs
Protection type	IP 21
Connection	Quick-action socket
