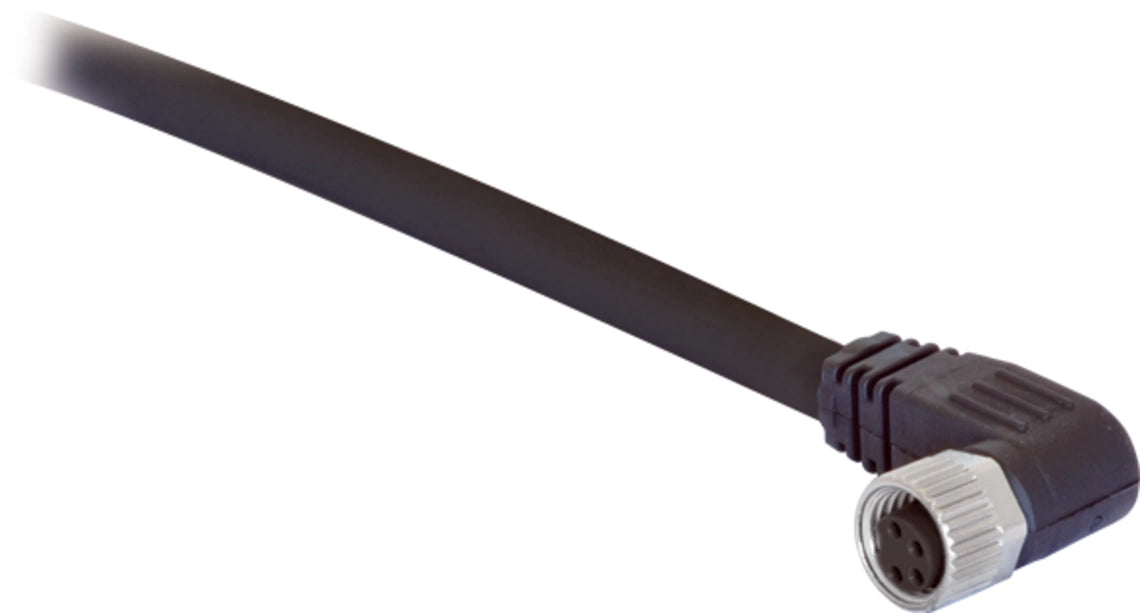

DI-Soric TKHM-W-10/4, Connecting cable, sku: 201709

Our open-ended connection cables are the optimal solution for putting all sensors, lighting as well as Vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• Drag chain compatible
• Sturdy metal union nut
• Durable PU coating
• Flexible lead design
• Good stripping properties
• High protection type
• Gold-plated plug-in contacts

Service voltage	< 60 V AC/DC
Length	10,000 mm
Diameter	Ø 4.8 mm (Diameter)
Thread	M8 x 1
Material of cable	Polyurethane, unshielded
Drag chain properties	70 mm (Min. bending radius)
Protection class	III, operation on protective low voltage
Design	Angled / open cable end
Characteristics	Metal nut
Drag chain compatible	Yes
LED Anzeige	No
Ambient temperature during operation	-5 … +80 °C (Movable, Fixed)
Protection type	IP 67
Connection	Socket, M8, 4-pin, A-coded
Cross-section	0.25 mm² (4 x)
