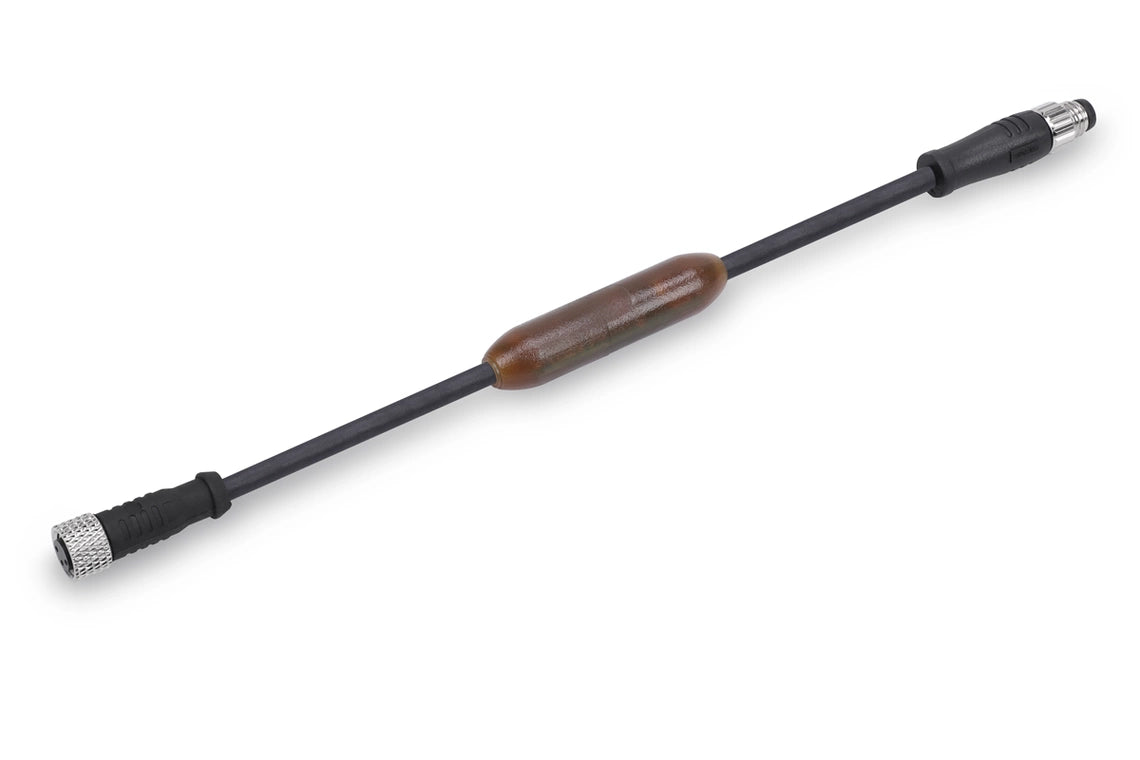

DI-Soric TKHM-Z/TSM-Z/UN, Signal processing, sku: 203161

Function adapters can change sensor-specific properties to the desired function (e.g. pulse stretching). They are suitable for all conventional sensors, feature a compact design and can be retrofitted quickly and easily.

• Suitable for all standard sensors
• Compact design
• Can be retrofitted quickly and easily
• High temperature use range
• LED display for status and switching output

Current-carrying capacity	200 mA, short-circuit-proof
Service voltage	10 … 35 V DC
No-load current (max.)	20 mA
Thread	M8 x 1
Housing material	Plastic
Protection class	III, operation on protective low voltage
Evaluation	npn -> pnp converter
Application	Digital signal
Switching frequency	5000 Hz
Ambient temperature during operation	-20 … +70 °C
Protection type	IP 67
Connection	Pigtail, Coupling, M8, 3-pin
Connection 2	Pigtail, Connector, M8, 3-pin
