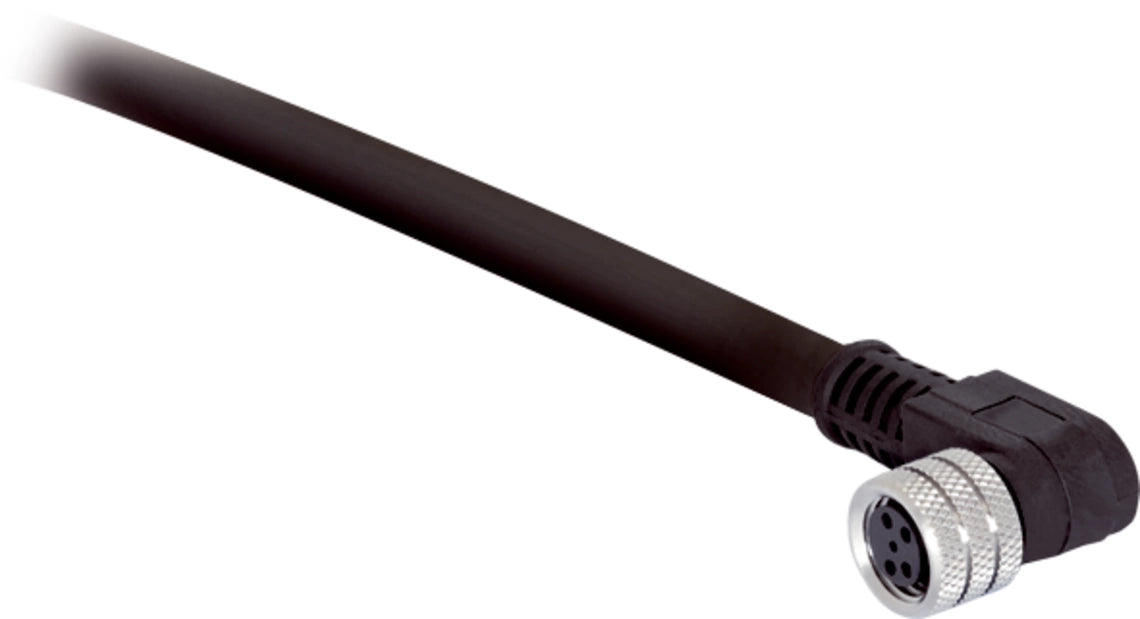

DI-Soric TKPM-W-5/LP, Connecting cable, sku: 203503

Our open-ended connection cables are the optimal solution for putting all sensors, lighting as well as Vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• Cable material made of PVC for applications in wet rooms or under water
• LEDs for service voltage and switching status
• Sturdy metal union nut
• Flexible lead design
• Good stripping properties
• High protection type
• Gold-plated plug-in contacts

Service voltage	< 30 V DC
Length	5,000 mm
Diameter	Ø 4.5 mm (Diameter)
Thread	M8 x 1
Material of cable	PVC, unshielded
Protection class	III, operation on protective low voltage
Design	Angled / open cable end
Characteristics	Metal nut
LED Anzeige	Yes
Ambient temperature during operation	-5 … +80 °C (Movable, Fixed)
Protection type	IP 67
Connection	Socket, M8, 3-pin, A-coded
Cross-section	0.25 mm² (3 x)
