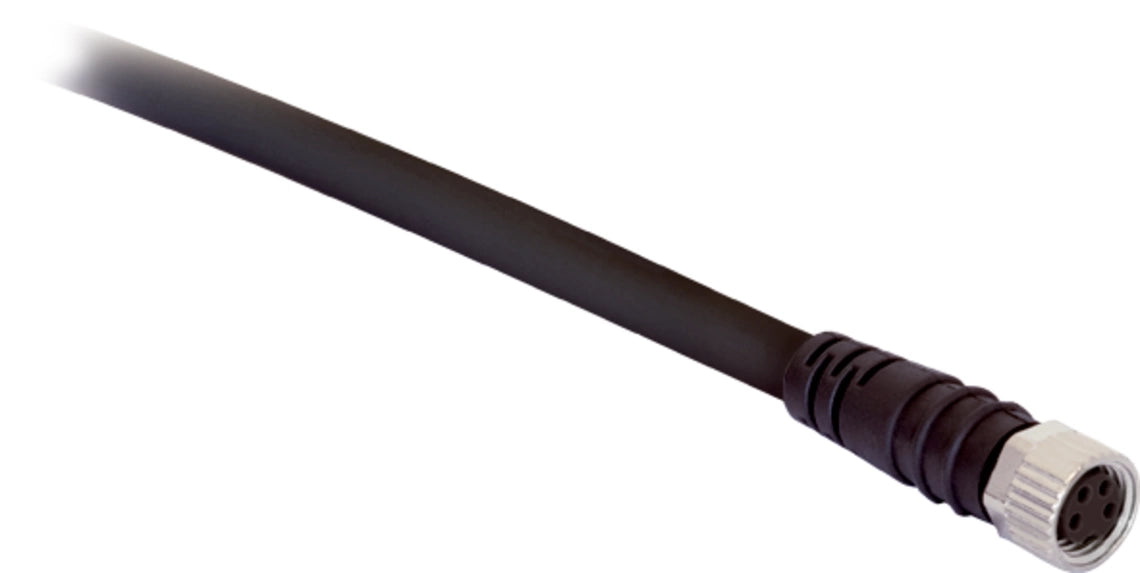

DI-Soric TKPM-Z-2.5/4 Connection cable

Our open-ended connection cables are the optimal solution for putting all sensors, lighting as well as Vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• Cable material made of PVC for applications in wet rooms or under water
• Sturdy metal union nut
• Flexible lead design
• Good stripping properties
• High protection type
• Gold-plated plug-in contacts

Service voltage	< 60 V AC/DC
Length	2,500 mm
Diameter	Ø 4.8 mm (Diameter)
Thread	M8 x 1
Material of cable	PVC, unshielded
Protection class	III, operation on protective low voltage
Design	Straight / open cable end
Characteristics	Metal nut
LED Anzeige	No
Ambient temperature during operation	-5 … +80 °C (Movable, Fixed)
Protection type	IP 67
Connection	Socket, M8, 4-pin, A-coded
Cross-section	0.25 mm² (4 x)
