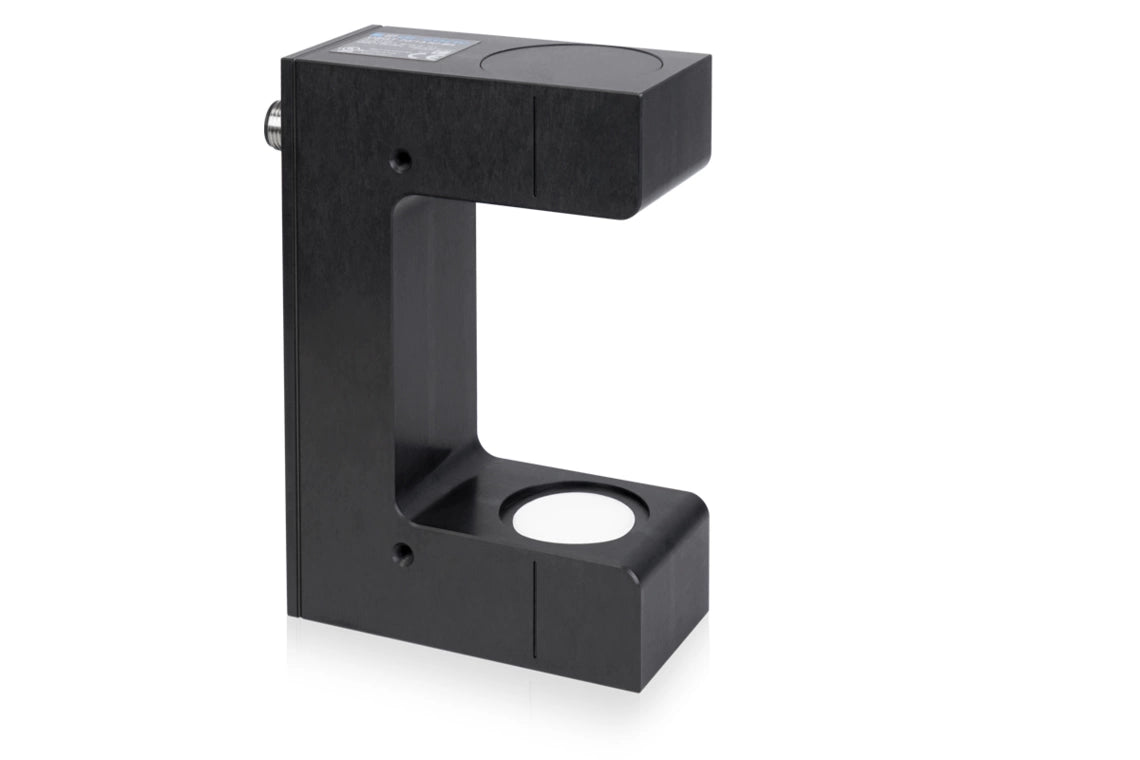

DI-Soric USGT 70/13 IU-B4 Ultrasonic fork sensor USGT

The USGT ultrasonic fork sensors are balanced sensors for determining the position of edges in films and paper (transparent, non-transparent and reflective). The sensors are distinguished by a very high repetition accuracy. They are insensitive to dirt and have a robust metallic housing in a high protection class. More information

• Large linearized analog range
• Very high repeatability
• Web edge control also with transparent materials
• Resistant to dirt

Service voltage	12 … 30 V DC
No-load current (max.)	40 mA (24 V DC)
Ripple	10 %
Insulation voltage endurance	500 V
Fork opening	70 mm
Housing material	Aluminum (Black, Anodized)
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	Ultrasonic through-beam sensor
Evaluation	analog
Design	Fork
Analog output	0 … 10 V, 4 … 20 mA
Resolution	0.1 mm
Measuring range	13 mm (typ.)
Reproducibility	± 0.1 mm
Sensitivity adjustment	Keypad
Measuring frequency	285 Hz
Ambient temperature during operation	0 … +60 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin
Connection cable	VKHM … /4
