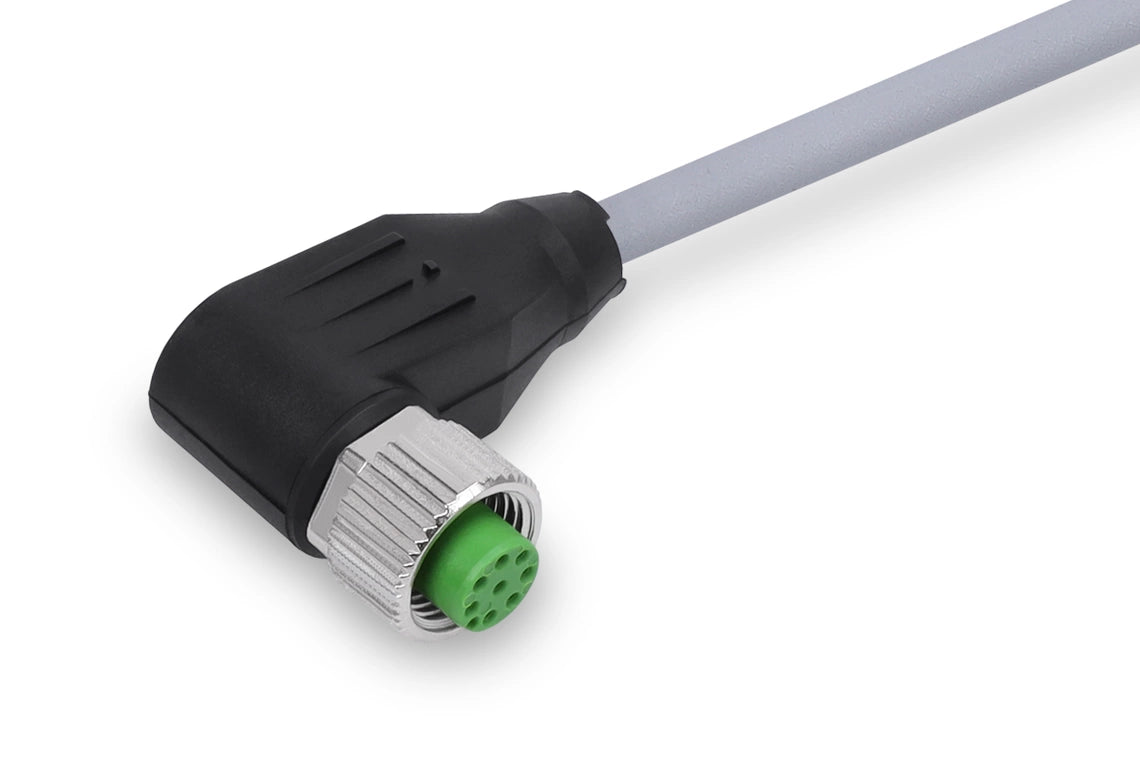

DI-Soric VKHM-W-2.5/8, Connecting cable, sku: 208155

Our open-ended connection cables are the optimal solution for putting all sensors, lighting as well as Vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• Drag chain compatible
• Sturdy metal union nut
• Durable PU coating
• Flexible lead design
• Good stripping properties
• High protection type
• Gold-plated plug-in contacts

Service voltage	30 V AC/DC
Length	2,500 mm
Diameter	Ø 6.0 mm (Diameter)
Thread	M12
Material of cable	Polyurethane, unshielded
Drag chain properties	90 mm (Min. bending radius)
Protection class	III, operation on protective low voltage
Design	Angled / open cable end
Characteristics	Metal nut
Drag chain compatible	Yes
LED Anzeige	No
Ambient temperature during operation	-25 … +85 °C (Movable, Fixed)
Protection type	IP 65 / IP 66K / IP 67
Connection	Socket, M12, 8-pin, A-coded
Cross-section	0.25 mm² (8 x)
