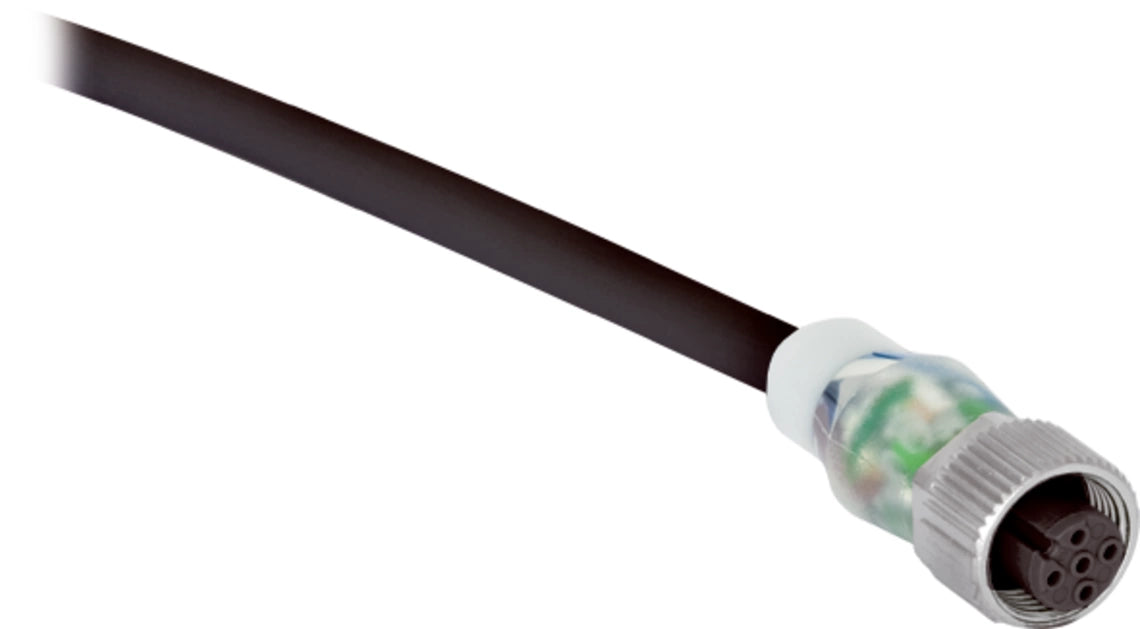

DI-Soric VKHM-Z-2.5/4/LP, Connecting cable, sku: 201872

Our open-ended connection cables are the optimal solution for putting all sensors, lighting as well as Vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• LEDs for service voltage and switching status
• Drag chain compatible
• Sturdy metal union nut
• Durable PU coating
• Flexible lead design
• Good stripping properties
• High protection type
• Gold-plated plug-in contacts

Service voltage	24 V DC
Length	2,500 mm
Diameter	Ø 4.5 mm (Diameter)
Thread	M12
Material of cable	Polyurethane, unshielded
Drag chain properties	45 mm (Min. bending radius)
Protection class	III, operation on protective low voltage
Design	Straight / open cable end
Characteristics	Metal nut
Drag chain compatible	Yes
LED Anzeige	Yes
Ambient temperature during operation	-25 … +85 °C (Movable, Fixed)
Protection type	IP 65 / IP 66K / IP 67
Connection	Socket, M12, 4-pin, A-coded
Cross-section	0.34 mm² (4 x)
