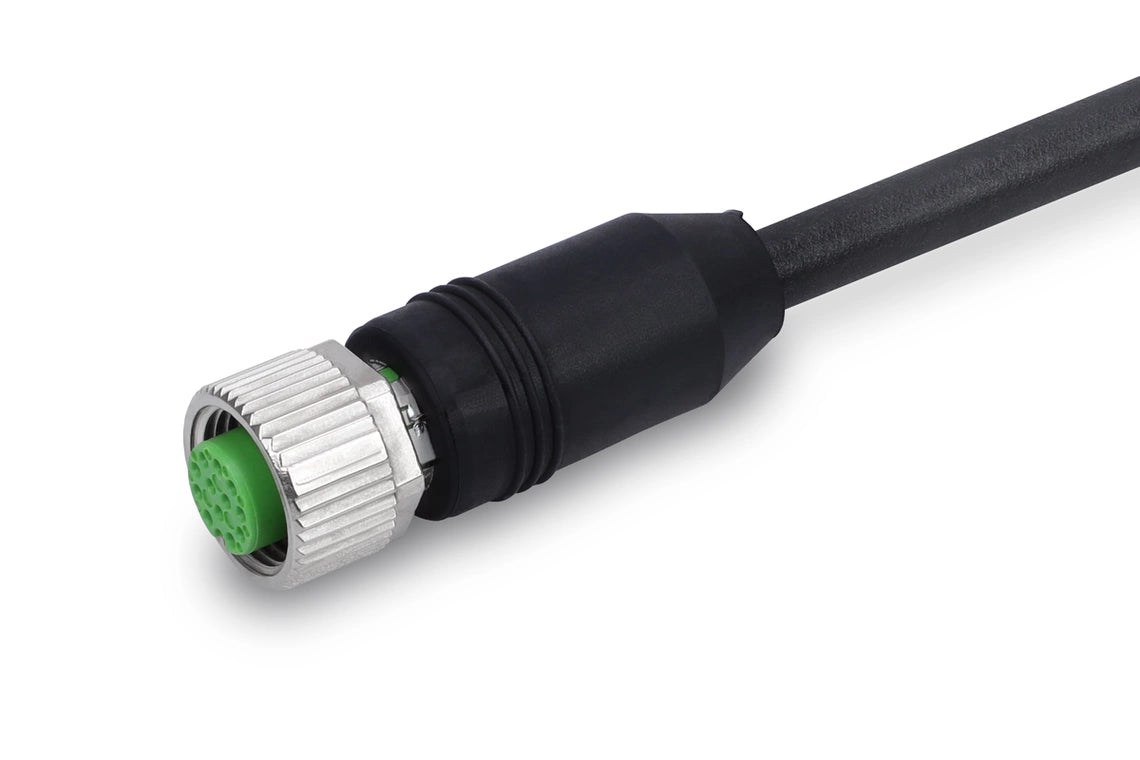

DI-Soric VKHM-Z-30/12-A, Connecting cable, P\n: 210618

Our open-ended connection cables are the optimal solution for putting all sensors, lighting as well as Vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• Shielded
• Cable material made of PVC for applications in wet rooms or under water
• Sturdy metal union nut
• Flexible lead design
• Good stripping properties
• High protection type
• Gold-plated plug-in contacts

Service voltage	< 30 V AC/DC
Length	30,000 mm
Diameter	Ø 6.5 mm (Diameter)
Thread	M12
Material of cable	PVC, shielded
Component	Connection cable
Design	Straight / open cable end
Characteristics	Metal nut
To be used for	CS 50 Vision Sensors, CS 60 Vision Sensors
LED Anzeige	No
Ambient temperature during operation	-5 … +80 °C (Movable, Fixed)
Protection type	IP 67
Connection	Socket, M12, 12-pin, A-coded
Cross-section	0.14 mm² (12 x)
