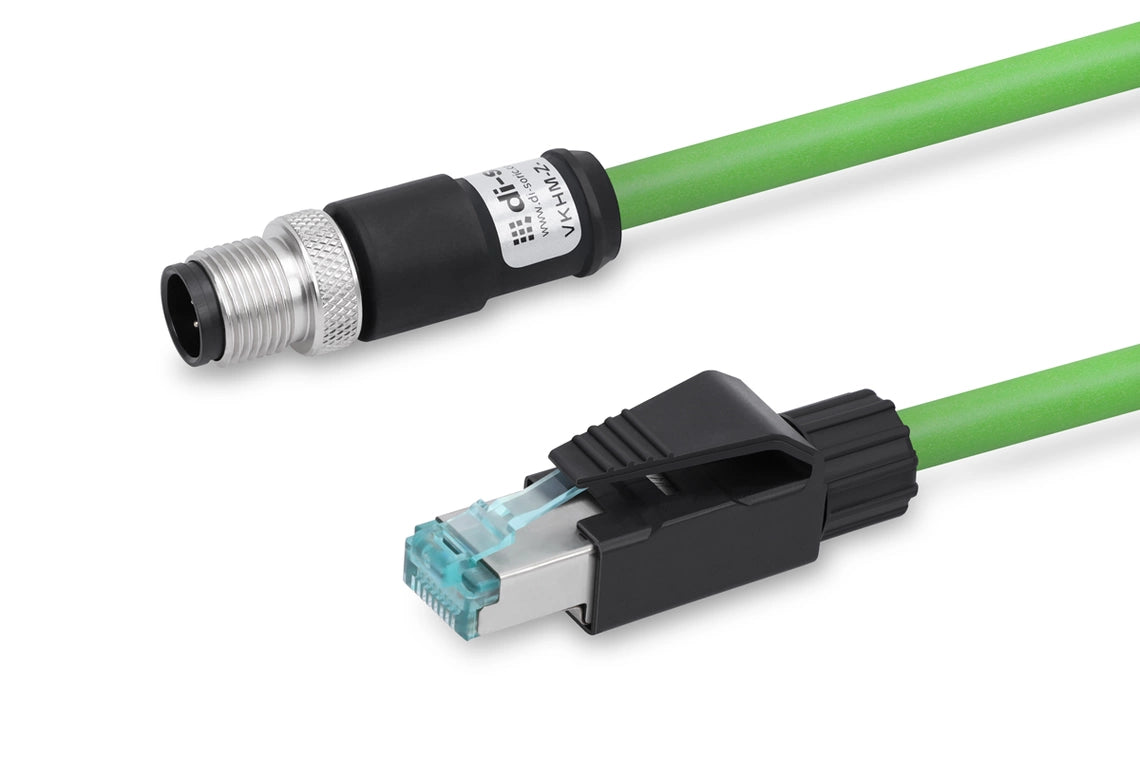

DI-Soric VKHM-Z-35/RJ45 Connection technology

Connection cables with a two-sided plug connector are the optimal solution for putting all sensors, lighting as well as vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• For Ethernet connection
• Drag chain compatible
• Oil-resistant

Service voltage	30 V DC
Length	30,000 mm
Thread	M12
Material of cable	Polyurethane, unshielded
Protection class	III, operation on protective low voltage
Component	Interface cable
Design	Straight / straight
To be used for	CS 50 Vision Sensors
Drag chain compatible	Yes
Ambient temperature during operation	-40 … +80 °C
Protection type	IP 67
Connection	Socket, M12, 8-pin, X-coded
Connection 2	Connector, RJ 45, 8-pin
