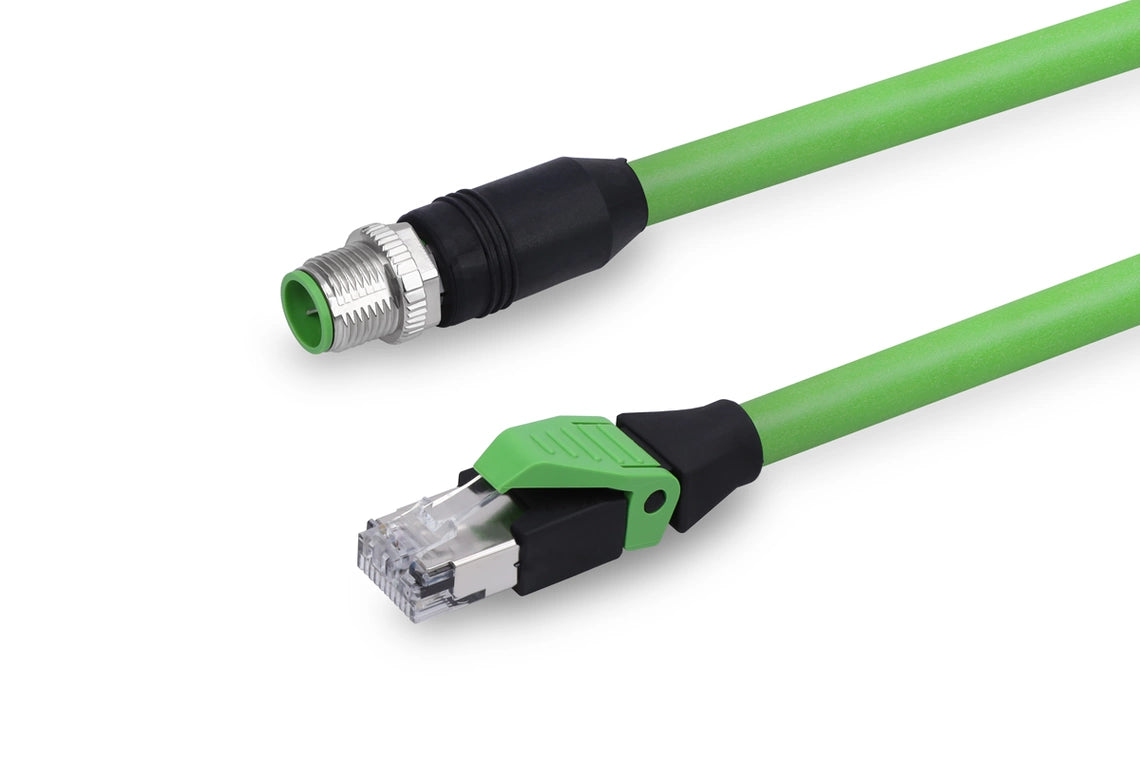

DI-Soric VKHM-Z-5/4-RJ45 Connection technology

Connection cables with a two-sided plug connector are the optimal solution for putting all sensors, lighting as well as vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• For Ethernet connection
• Drag chain compatible
• Chemically stable

Service voltage	60 V DC
Length	5,000 mm
Thread	M12 x 1
Material of cable	Polyurethane, shielded
Drag chain properties	Fixed: 15 x Ø (Min. bending radius)
Protection class	III, operation on protective low voltage
Design	Straight / straight
To be used for	FS 12-100-1 M G3-B8-E
Drag chain compatible	Yes
Ambient temperature during operation	-40 … +80 °C (Movable, Fixed)
Protection type	IP 67
Connection	Socket, M12, 4-pin, A-coded
Connection 2	Connector, RJ 45, 4-pin
Cross-section	(4 x)
