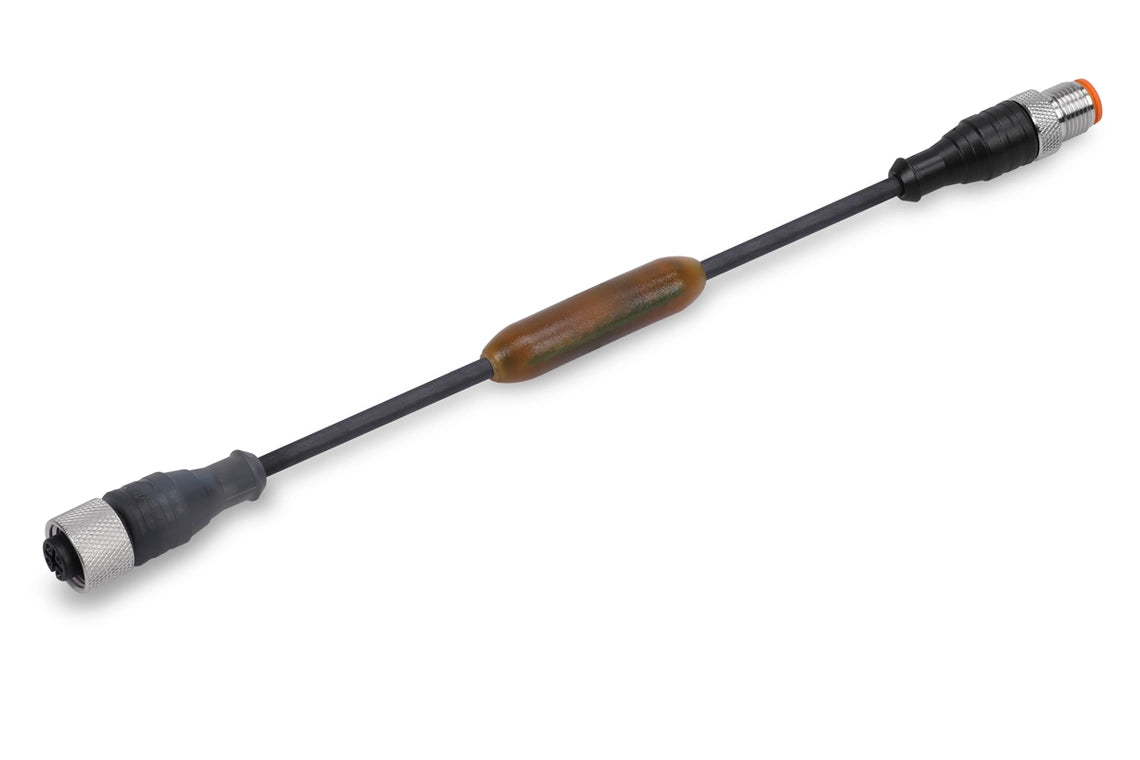

DI-Soric VKHM-Z/VSM-Z/P4, Signal processing, sku: 202856

Function adapters can change sensor-specific properties to the desired function (e.g. pulse stretching). They are suitable for all conventional sensors, feature a compact design and can be retrofitted quickly and easily.

• Suitable for all standard sensors
• Compact design
• Can be retrofitted quickly and easily
• High temperature use range
• LED display for status and switching output

Current-carrying capacity	200 mA, short-circuit-proof
Service voltage	10 … 35 V DC
No-load current (max.)	20 mA
Thread	M12 x 1
Housing material	Plastic
Protection class	III, operation on protective low voltage
Evaluation	pnp antivalence device
Application	Digital signal
Function selection	pnp
Switching output	pnp (2x)
Switching frequency	3500 Hz
Ambient temperature during operation	-20 … +70 °C
Protection type	IP 67
Connection	Pigtail, Coupling, M12, 4-pin
Connection 2	Pigtail, Connector, M12, 3-pin
