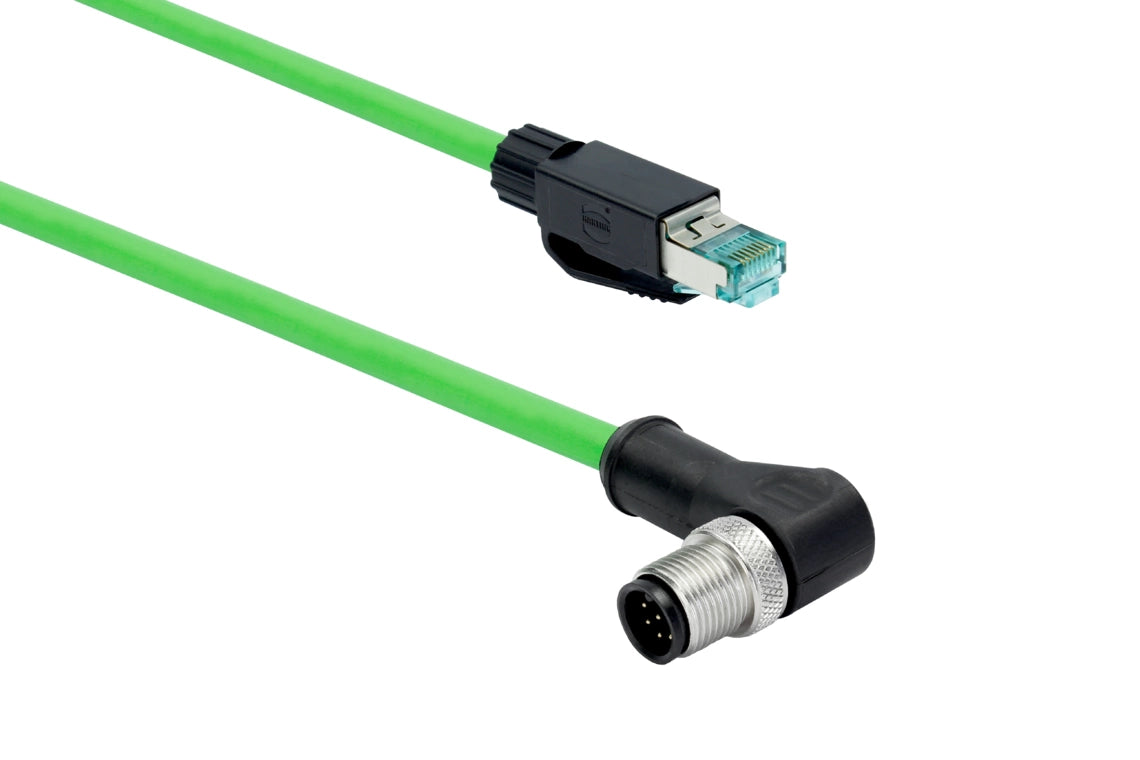

DI-Soric VKPM-W-1.5/RJ45-CS60 Connection technology

In the area of electrical accessories, we offer Y cables, connection cables from 12-pin to 4-pin, and various other cables.

• For Ethernet connection
• Drag chain compatible
• High protection type
• Oil-resistant
• For CS-60 Vision Sensors

Service voltage	125 V AC
Length	1,500 mm
Diameter	Ø 6.4 mm (Diameter)
Material of cable	shielded
Component	Connection cable
Design	angled / straight
To be used for	CS 60 Vision Sensors
Transmission parameters	CAT6, Class EA (ISO/IEC 11801:2002), (EN 50173-1)
Ambient temperature during operation	-25 … +80 °C
Protection type	IP 20
Connection	RJ 45
Connection 2	Coupling, M12, 8-pin
Cross-section	0.14 x 0.14 mm
