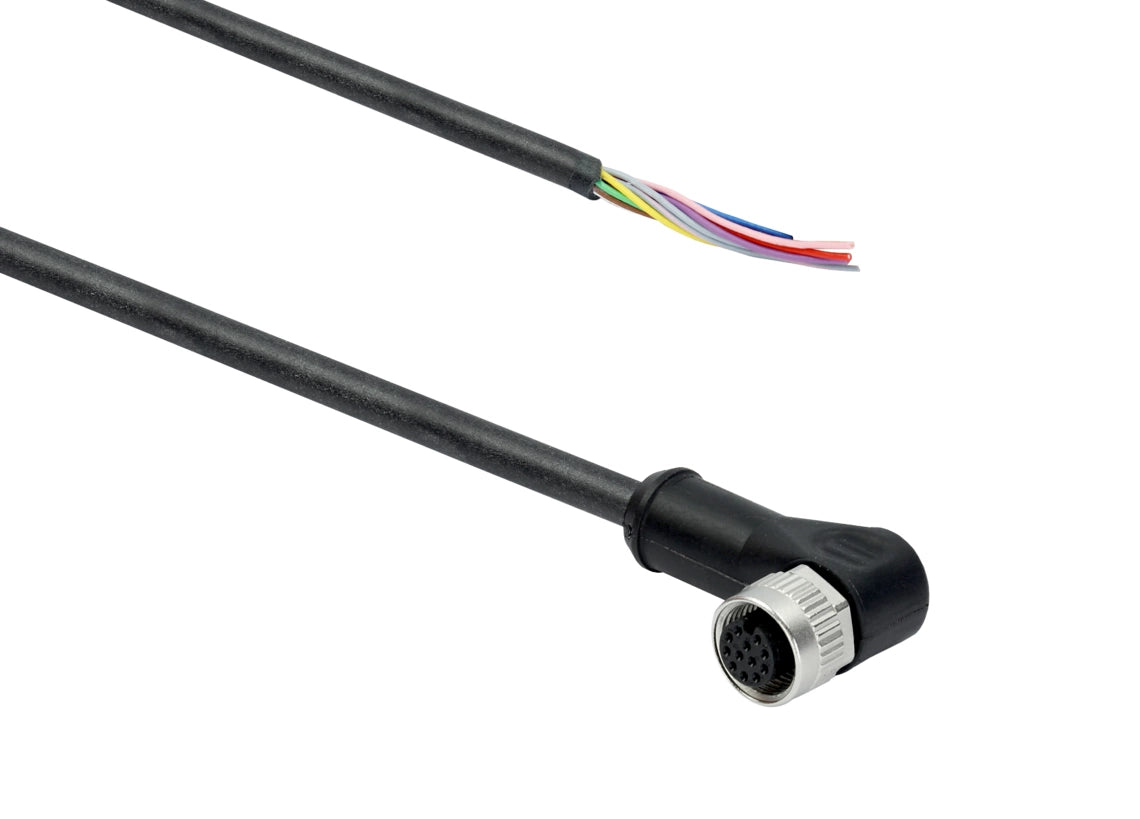

DI-Soric VKPM-W-5/12-A-CS60 Connection technology

In the area of electrical accessories, we offer Y cables, connection cables from 12-pin to 4-pin, and various other cables.

• Shielded
• Sturdy metal union nut
• Flexible lead design
• Good stripping properties
• High protection type
• For CS-60 Vision Sensors

Service voltage	< 30 V AC/DC
Length	5,000 mm
Diameter	Ø 6.5 mm (Diameter)
Thread	M12 x 1
Material of cable	PVC, shielded
Material	PVC (Cable)
Drag chain properties	10 x Ø (Min. bending radius)
Protection class	III, operation on protective low voltage
Component	Connection cable
Design	Angled / open cable end
Characteristics	Shielded, Metal nut
To be used for	CS 60 Vision Sensors
Ambient temperature during operation	-5 … +80 °C (Movable, Fixed)
Protection type	IP 67 (at tightening torque 0.6 Nm)
Connection	Socket, M12, 12-pin, 12 x 0.14 mm²
Connection 2	flying leads
