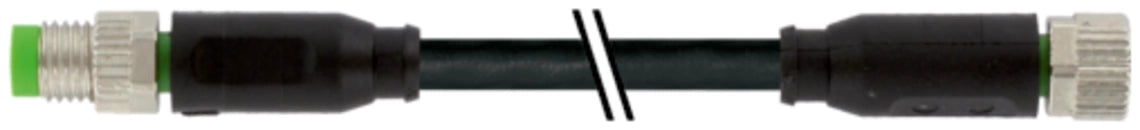

DI-Soric VL-TZSA-TZKA-4PBK-200X Connection technology

Connection cables with a two-sided plug connector are the optimal solution for putting all sensors, lighting as well as vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• Sturdy metal union nut
• Flexible lead design
• High protection type

Service voltage	max. 50 V AC / max. 60 V DC
Operating current	max. 4 A / Contact
Length	2,000 mm
Diameter	Ø 4.8 mm (Diameter)
Thread	M8 x 1
Material of cable	PVC, Black, unshielded
Weight	75 g
Tightening torque	0.4 Nm (recommended)
Protection class	III, operation on protective low voltage
Design	Straight / straight
Characteristics	Metal nut
Temperature range	-5 … +80 °C (Movable), -30 … +80 °C (Fixed)
Protection type	IP 65 / IP 66K / IP 67
Connection	Connector, M8, 4-pin, A-coded
Connection 2	Socket, M8, 4-pin, A-coded
Cross-section	0.25 x 0.25 mm (4 x)
