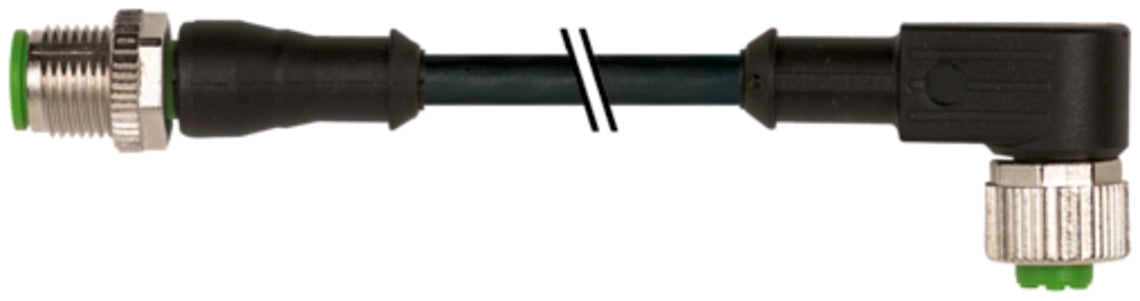

DI-Soric VL-VZSA-VWKA-3JBK-300Y-S Connection technology

Connection cables with a two-sided plug connector are the optimal solution for putting all sensors, lighting as well as vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• Drag chain compatible
• Sturdy metal union nut
• Flexible lead design
• High protection type

Operating current	max. 4 A / Contact
Length	3,000 mm
Diameter	Ø 4.1 mm (Diameter)
Thread	M12 x 1
Material of cable	Polyurethane, Black, unshielded
Weight	114 g
Drag chain properties	10 x Ø (Min. bending radius)
Tightening torque	0.6 Nm (recommended)
Protection class	III, operation on protective low voltage
Design	Straight / angled
Characteristics	Metal nut
Drag chain compatible	Yes
Temperature range	-25 … +80 °C (Movable), -40 … +80 °C (Fixed)
Protection type	IP 65 / IP 66K / IP 67
Connection	Connector, M12, 3-pin, A-coded
Connection 2	Socket, M12, 3-pin, A-coded
Cross-section	0.34 x 0.34 mm (3 x)
