DI-Soric

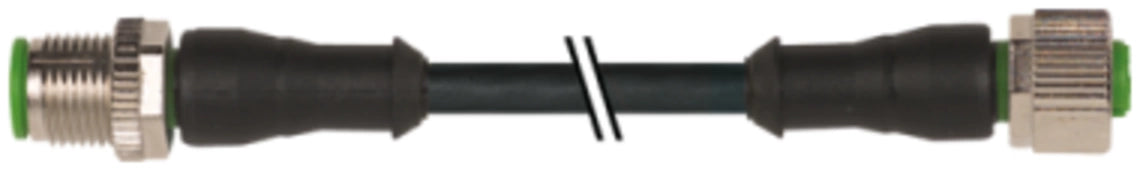

DI-Soric VL-VZSA-VZKA-3JBK-500Y-S
DI-Soric VL-VZSA-VZKA-3JBK-500Y-S
Regular price
€23,12
Regular price
Sale price
€23,12
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 01.12.2025
Couldn't load pickup availability
SKU: SKU:214575
- Drag chain compatible
- Sturdy metal union nut
- Flexible lead design
- High protection type
| Service voltage | max. 250 V AC/DC |
| Operating current | max. 4 A / Contact |
| Length | 5,000 mm |
| Diameter | Ø 4.1 mm (Diameter) |
| Thread | M12 x 1 |
| Material of cable | Polyurethane, Black, unshielded |
| Weight | 172 g |
| Tightening torque | 0.6 Nm (recommended) |
| Protection class | III, operation on protective low voltage |
| Design | Straight / straight |
| Characteristics | Metal nut |
| Drag chain compatible | Yes |
| Temperature range | -25 … +80 °C (Movable), -40 … +80 °C (Fixed) |
| Protection type | IP 65 / IP 66K / IP 67 |
| Connection | Connector, M12, 3-pin, A-coded |
| Connection 2 | Socket, M12, 3-pin, A-coded |
| Cross-section | 0.34 x 0.34 mm (3 x) |
