DI-Soric

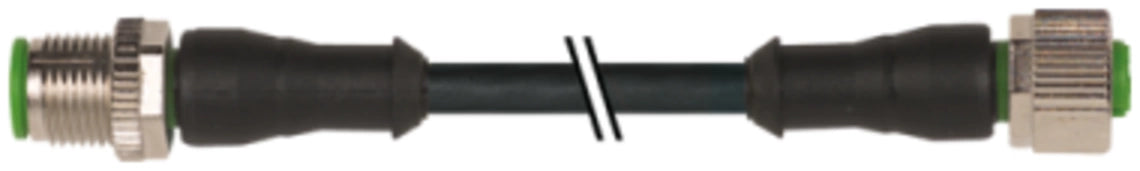

DI-Soric VL-VZSA-VZKA-3PBK-250Y
DI-Soric VL-VZSA-VZKA-3PBK-250Y
Regular price
€15,37
Regular price
Sale price
€15,37
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 01.12.2025
Couldn't load pickup availability
SKU: SKU:214563
- Sturdy metal union nut
- Flexible lead design
- High protection type
| Service voltage | max. 250 V AC/DC |
| Operating current | max. 4 A / Contact |
| Length | 2,500 mm |
| Diameter | Ø 4.6 mm (Diameter) |
| Thread | M12 x 1 |
| Material of cable | PVC, Black, unshielded |
| Weight | 108 g |
| Tightening torque | 0.6 Nm (recommended) |
| Protection class | III, operation on protective low voltage |
| Design | Straight / straight |
| Characteristics | Metal nut |
| Temperature range | -5 … +80 °C (Movable), -30 … +80 °C (Fixed) |
| Protection type | IP 65 / IP 66K / IP 67 |
| Connection | Connector, M12, 3-pin, A-coded |
| Connection 2 | Socket, M12, 3-pin, A-coded |
| Cross-section | 0.34 x 0.34 mm (3 x) |
