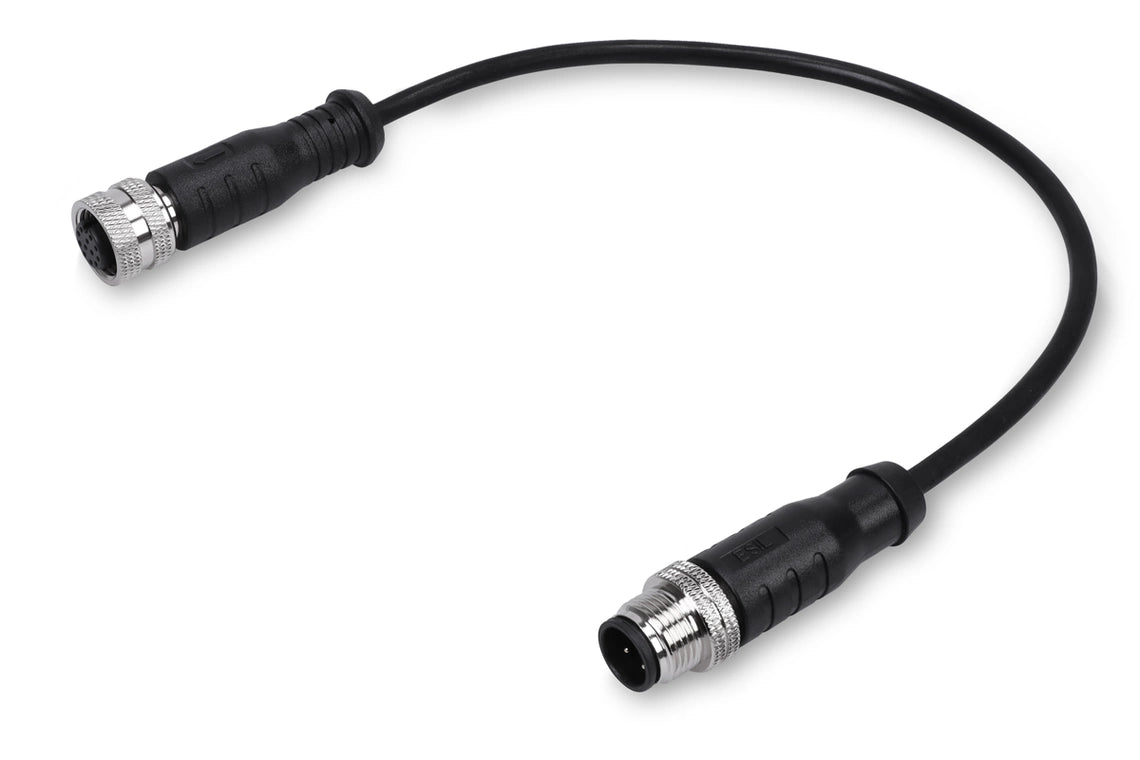

DI-Soric VSHM-Z-0.2/4/VKM-Z/12-A-CS60 Connection technology

In the area of electrical accessories, we offer Y cables, connection cables from 12-pin to 4-pin, and various other cables.

• Shielded
• Connection cable: Connector / coupling
• Sturdy metal union nut
• High protection type

Service voltage	30 V DC
Length	200 mm
Protection class	III, operation on protective low voltage
Component	Connection cable
Design	Straight / straight
To be used for	CS 60 Vision Sensors
Ambient temperature during operation	-25 … +85 °C
Protection type	IP 67 (at tightening torque 0.6 Nm)
Connection	Socket, M12 x 1, 12-pin
Connection 2	Connector, M12, 4-pin
Cross-section	0.14 x 0.14 mm (12 x)
