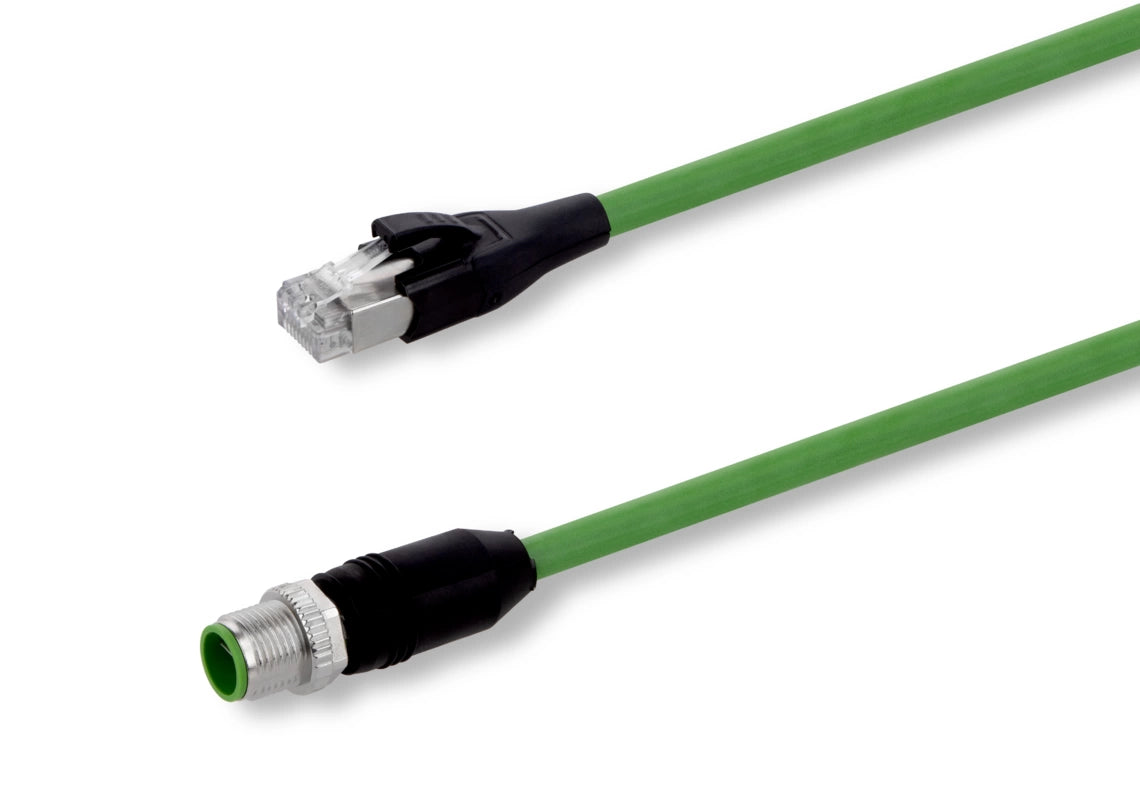

DI-Soric VSHM-Z-15/RJ45-X Connection technology

Connection cables with a two-sided plug connector are the optimal solution for putting all sensors, lighting as well as vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

Service voltage	30 V DC
Length	15,000 mm
Material of cable	Polyurethane, shielded
Drag chain properties	10 x Ø (Min. bending radius)
Protection class	III, operation on protective low voltage
Design	Straight / straight
To be used for	CS 60 Vision Sensors
Drag chain compatible	Yes
LED Anzeige	No
Ambient temperature during operation	-40 … +80 °C
Protection type	IP 20
Connection	Connector, M12, 8-pin, X-coded
Connection 2	Connector, RJ 45, 8-pin
