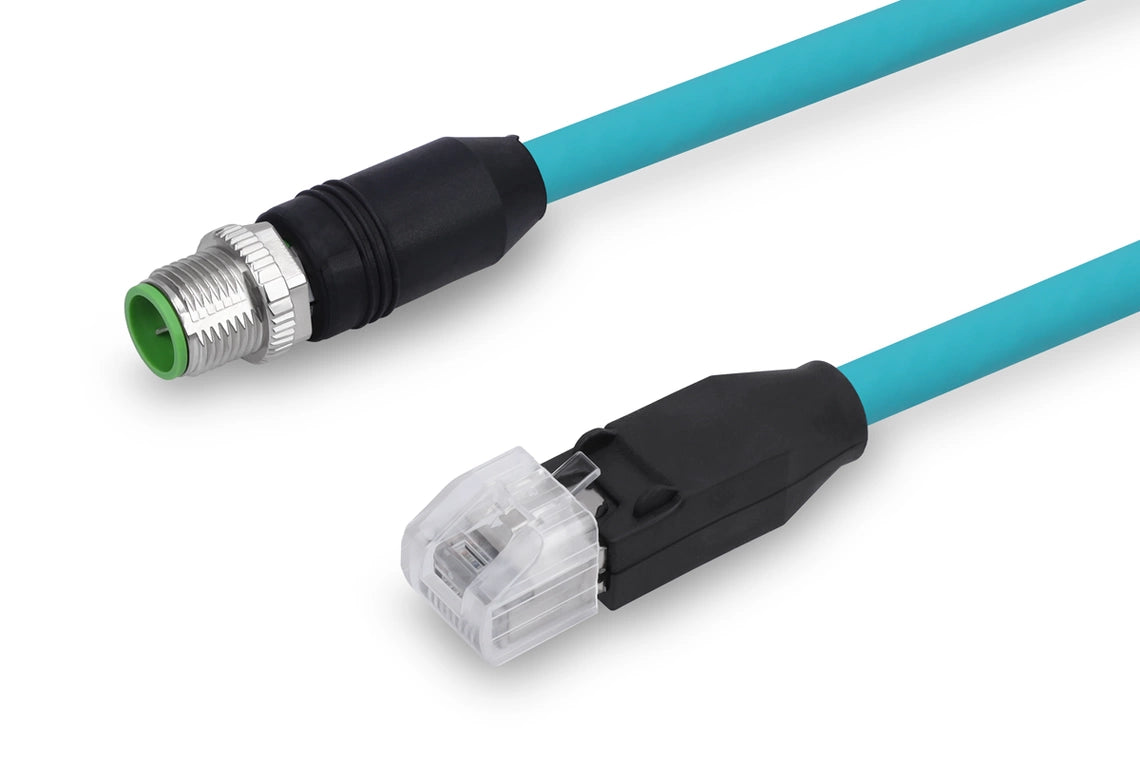

DI-Soric VSSM-Z-5/RJ45-X, Connection technology, P\n: 213119

Connection cables with a two-sided plug connector are the optimal solution for putting all sensors, lighting as well as vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• For Ethernet connection
• Shielded
• X-coded

Service voltage	30 V DC
Length	5,000 mm
Diameter	Ø 7.4 mm (Diameter)
Thread	M12 x 1
Material of cable	Polyurethane, shielded
Protection class	III, operation on protective low voltage
Design	Straight / straight
To be used for	CS 60 Vision Sensors
Ambient temperature during operation	-20 … +80 °C (Movable, Fixed)
Protection type	IP 20
Connection	Connector, M12, 8-pin, X-coded
Connection 2	Connector, RJ 45, 8-pin
