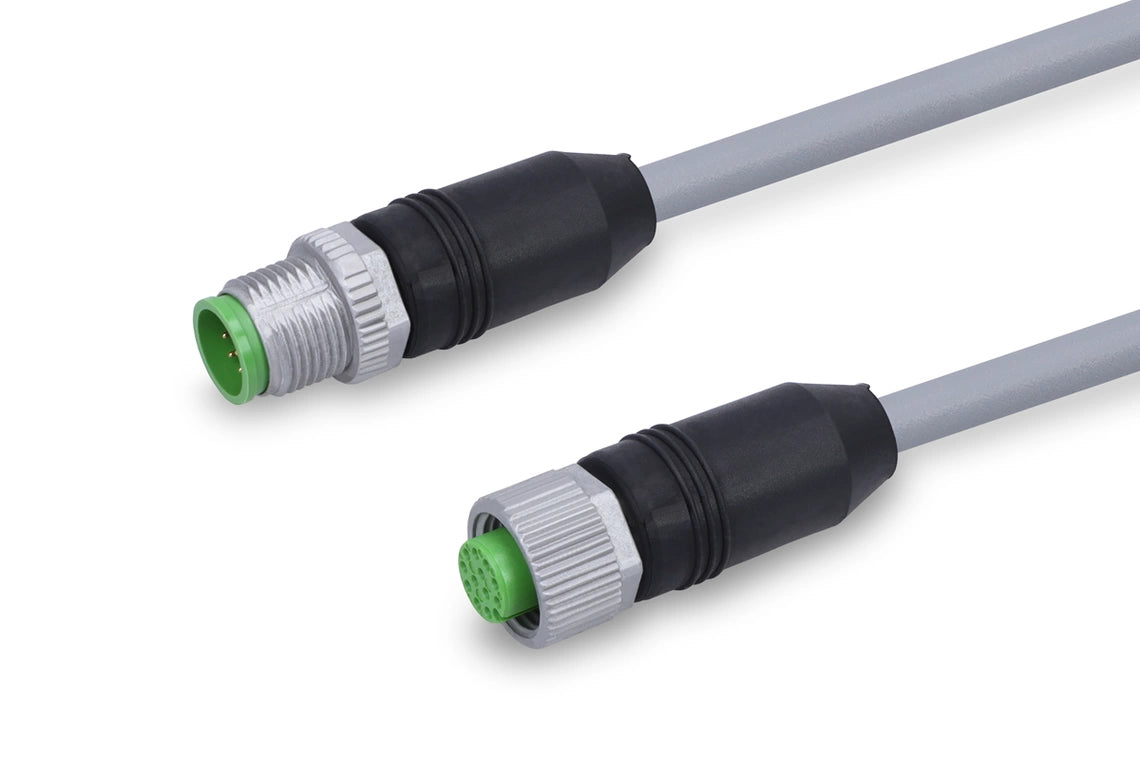

DI-Soric VSSM-Z-5/VKM-Z/12, Connection technology, P\n: 213125

Connection cables with a two-sided plug connector are the optimal solution for putting all sensors, lighting as well as vision and ID products into operation. They feature a stable metal union nut, good insulation properties and a high protection class.

• Sturdy metal union nut
• Flexible lead design
• Good stripping properties
• High protection type
• For CS Vision Sensors

Service voltage	< 30 V AC/DC
Length	5,000 mm
Material of cable	Polyurethane, unshielded
Drag chain properties	10 x Ø (Min. bending radius)
Protection class	III, operation on protective low voltage
Design	Straight / straight
To be used for	CS 60 Vision Sensors
Drag chain compatible	Yes
Ambient temperature during operation	-25 … +80 °C
Protection type	IP 67 (at tightening torque 0.6 Nm)
Connection	Connector, M12, 12-pin, A-coded
Connection 2	Socket, M12, 12-pin, A-coded
