DI-Soric

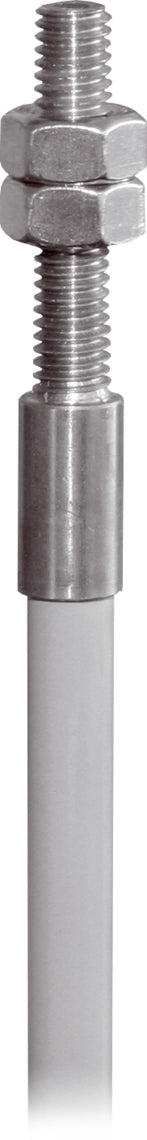

DI-Soric WRB 120 S-SG-M6x30-2.5, Sensor Accessories, P\n: 203614
DI-Soric WRB 120 S-SG-M6x30-2.5, Sensor Accessories, P\n: 203614
Regular price
€195,64
Regular price
Sale price
€195,64
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 01.12.2025
Couldn't load pickup availability
SKU: SKU:203614
- For operating color sensors with fiber optic connection
- High-quality glass fibers
- Arrangement of fibers statistically mixed
- Resistant to high temperatures
- Robust, highly flexible
| Length | 600 mm (Fiber optics) |
| Dimension fiber bundle | Ø 2.5 mm |
| Light aperture | axial |
| Bending radius | > 3 x tube-Ø |
| Material of fiber | Glass fibers |
| Component | Glass fiber optics |
| Operating principle | Diffuse sensor |
| Operation with | VO-M6/35-M6x30-2.5, VO-M6/50-M6x30-2.5 |
| Design | Thread |
| Single fiber | Ø 0.05 mm |
| To be used for | For operating color sensors with fiber optic connection |
| For FSB 50 M 60 G3-B8 | To be used |
| For FS 50 M G3-B8 | To be used |
| For FS 12-100-1 M G3-B8 | To be used |
| For FS 12-100-1 M G3-B8-E | To be used |
| For FS 12-100-2 M G3-B8 | To be used |
| Opening angle | 67° |
| Temperature resistance | -40 … +180 °C (temporarily up to +250 °C) |
| Protection type | IP 67 |
