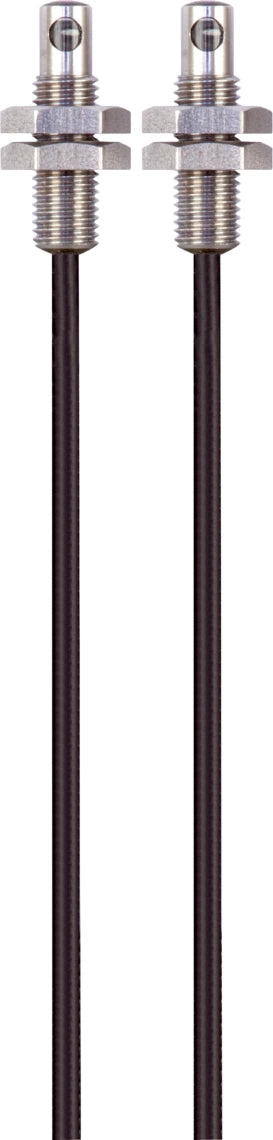

DI-Soric WRBE 2000 KR-M6-1.0 Plastic fiber optics

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.

• Lateral light emission
• Long range

Length	2,000 mm
Thread	M6 x 0.75
Light aperture	radial
Bending radius	> 25 mm
Material of fiber	Plastic
Approvals	UL
Operating principle	Through-beam sensor
Design	Thread
Single fiber-optics	Ø 2.2 mm
Single fiber	Ø 1.0 mm (151 x 0.075 mm)
To be used for	Device series OLV-K Amplifier
Opening angle	56°
Range	1700 mm
Temperature resistance	-25 … +70 °C
