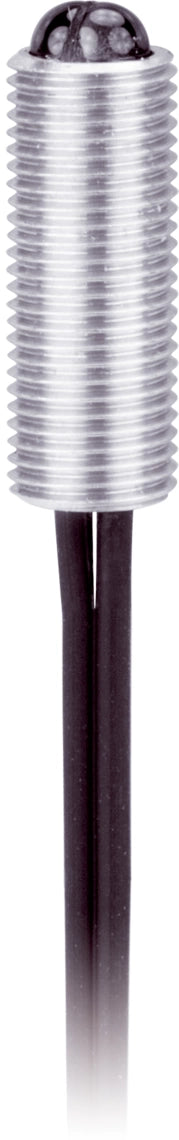

DI-Soric WRBT 2000 K-M5-Z8 Plastic fiber optics

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.

• Fine inner fiber for maximal resolution
• Spherical optics for cylindrical light beam Ø 8 mm

Length	2,000 mm
Thread	M5 x 0.5
Light aperture	axial, Spherical optics
Bending radius	> 15 mm
Material of fiber	Plastic
Approvals	UL
Operating principle	Diffuse sensor
Design	Thread
Single fiber-optics	Ø 1 mm
Single fiber	Ø 0.50 mm (151 x 0.075 mm)
To be used for	Device series OLV-K Amplifier
Opening angle	56°
Range	140 mm
Temperature resistance	-25 … +70 °C
