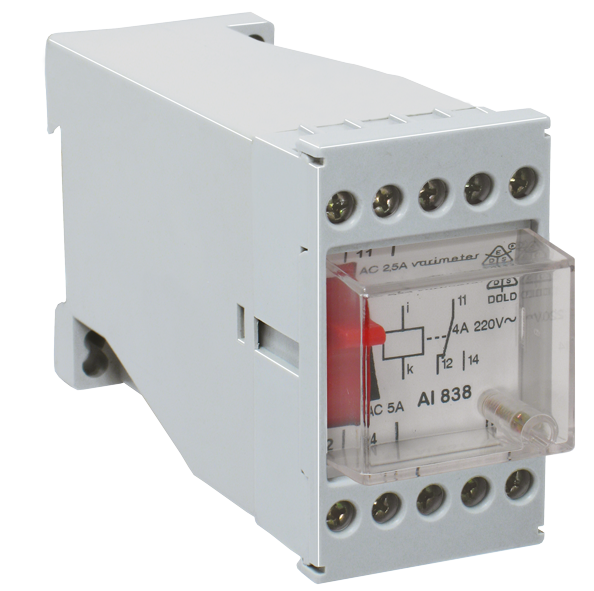

Dold AI 838 DC1,5-3A RW48%, Overcurrent Relay, sku: 0000871
Dold AI 838 DC1,5-3A RW48%, Overcurrent Relay, sku: 0000871
Regular price
€269,59
Regular price
Sale price
€269,59
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0000871
On the overcurrent relay AI 838 the scale is adjusted to the response value. When the current exceeds the setting value the relay switches on. The contact resets, as soon as the current goes under the setting value x hysteresis.
| Width: | 45 mm |
| 1- / 3-phase: | 1 |
| Measuring range: | AC, DC 0,5 - 16 A |
| Auxiliary voltage: | Without |
| Output contacts: | 1 C/O contact |
| Enclosure design: | Switch cabinet |
| Type: | AI 838 |
- According to nach IEC/EN 60 255-1
- Single-phase
- Without auxiliary supply
- Measuring ranges from 0.5 to 16 A
- Settable response value
- 1 changeover contact
- Width 45 mm
