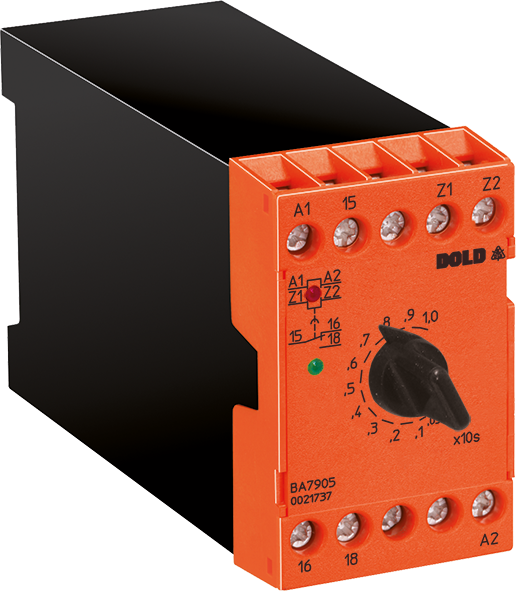

Dold BA7905.81 DC110-127V 0,15-3S, Timer, On-delay, sku: 0022759

The timer BA 7905 can be used to switch devices and controls with an adjustable on delay. With these timer the start behaviour of machine parts e. g. the starting of motors can be influenced. With a potentiometer the time delay can be adjusted simply over a large setting range.

• Power ON-delay relay according to EN 61812-1
• Delay up to 300 s
• Repeat accuracy < ± 1 %
• Voltage up to DC 220 V without series resistor
• With remote potentiometer connection
• With LED indication for operation and contact position
• 1 or 2 changeover contacts
• Width 45 mm
