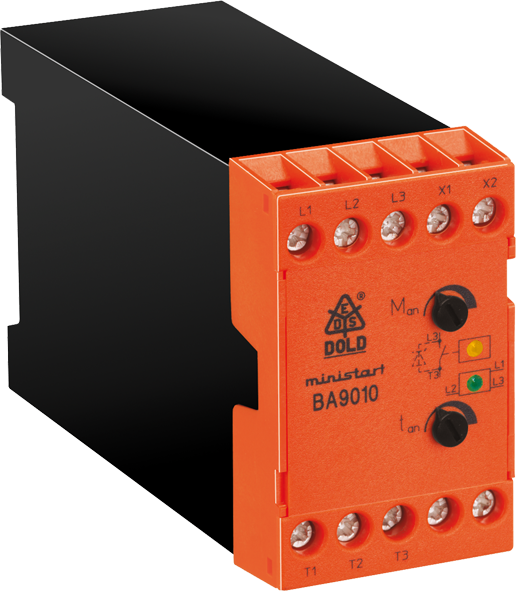

Dold BA9010 3AC110V 1,5KW, Softstarter, sku: 0056233

The BA 9010 and BN 9011 are electronic devices designed to enable 1-phase or 3-phase induction motors to start smoothly. BA 9010 / BN 9011 slowly ramps up the current on one phase, therefore allowing the motor torque to build up slowly. This reduces the mechanical stress on the machine and prevents damage to conveyed material. When the motor is up to full speed the semiconductors in BA 9010 / BN 9011 are bridged to prevent internal power losses an heat build up.

• According to IEC/EN 60947-4-2
• For motors up to 5.5 kW (BA 9010) and to 11 kW (BN 9011)
• 1 phase control
• Adjustable ramp time and starting torque. Can be combined with motor brake units
• LED indication
• BA 9010: Width 45 mm
  BN 9011: Width 100 mm
