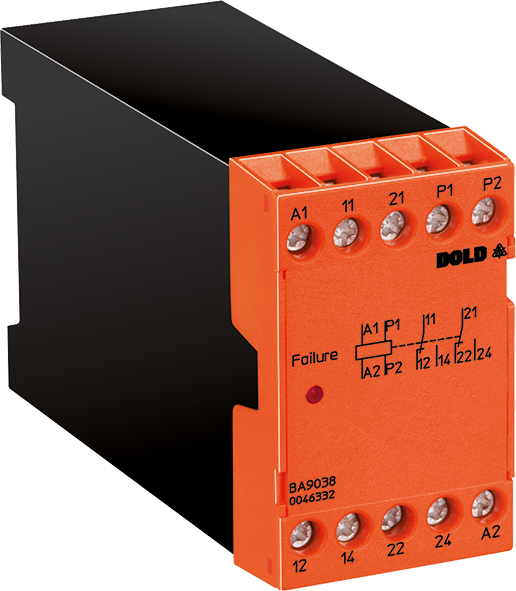

Dold BA9038.12/100 AC50/60HZ 230V, Thermistor Motor Protection Relay, sku: 0033085
Dold BA9038.12/100 AC50/60HZ 230V, Thermistor Motor Protection Relay, sku: 0033085
Regular price
€196,72
Regular price
Sale price
€196,72
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0033085
The thermistor motor protection relay BA 9038 is used to protect against thermal overload of motors caused by high switching frequency, havy duty starting, phase failure on one phase, bad cooling, high ambient temperature. Also the temperature monitoring of bearings, transmissions, oil and cooling liquids is possible. Up to six thermistors can be connected via the input.
| Width: | 45 mm |
| Measuring range max.: | > 3 kΩ |
| Auxiliary voltage: | AC, AC/DC |
| Classification: | Thermistor-Motorschutz |
| Output contacts: | 1 C/O contact, 2 C/O contacts |
| Enclosure design: | Switch cabinet |
| Type: | BA 9038 |
- According to IEC/EN 60947-8
- 1 input for PTC-resistors or bimetal contacts
- Broken wire detection in sensor circuit
- Optionally with no voltage reclosing interlock
- Closed circuit operation
- 1 or 2 changeover contacts
- Width 45 mm
