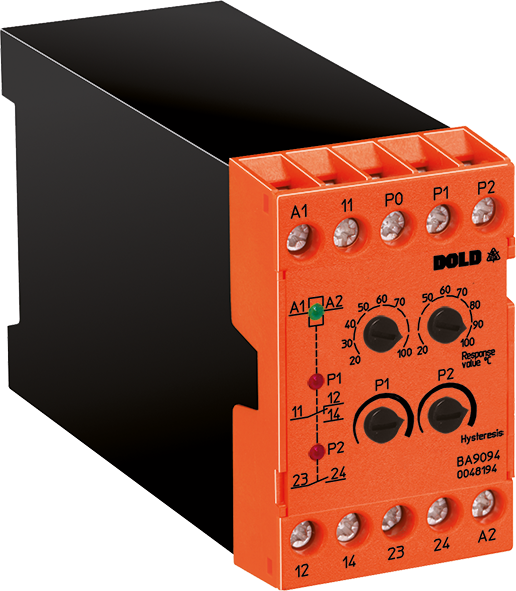

Dold BA9094.28/001 AC230V P1=110C/100C, Temperature Monitoring Relay, sku: 0054041

The temperature monitoring relay BA 9094 of the VARIMETER series is used for temperature monitoring of motors, ball bearings and rooms. Up to two PT100 sensors can be connected. The response and release values for each input can be set separately.

• According to IEC/EN 60255-1
• 2 PT 100 inputs with separate outputs or alternatively common output
• Optionally 1 PT 100 input with 2 separate outputs for 2 different response values
• Separate adjustable response and release values for each input
• Optionally with fixed response and release values
• Broken wire detection in sensor circuit
• Closed circuit operation
• 2 wire connection
• Width 45 mm
