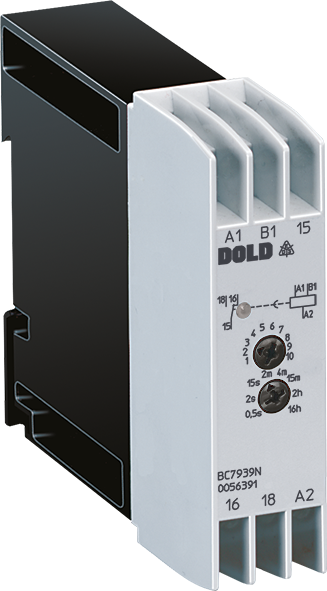

Dold BC7939N.81 AC/DC24V 0,05S-16H, Timer, Off-delay, sku: 0058999
Dold BC7939N.81 AC/DC24V 0,05S-16H, Timer, Off-delay, sku: 0058999
Regular price
€83,69
Regular price
Sale price
€83,69
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0058999
Time-dependent control circuits.
| Width: | 22,5 mm |
| Time function(s): | Off-delay, with control signal |
| Nominal voltage: | AC, DC, AC/DC |
| Time range: | 0,05 s - 16 h |
| Output contacts: | 1 C/O contact |
| Enclosure design: | Switch cabinet |
| Type: | BC 7939N |
- OFF-delay relay with control signal according to EN 61812-1
- 8 settable time ranges between 0.05 s and 10 h
- Settable release delay
- With auxiliary voltage
- Wide voltage range AC 110 ... 240 V
- Control input operated with nominal voltage, No voltage free contact necessary
- LED indicator for status of contact
- 1 changeover contact
- Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
- Width 22.5 mm
