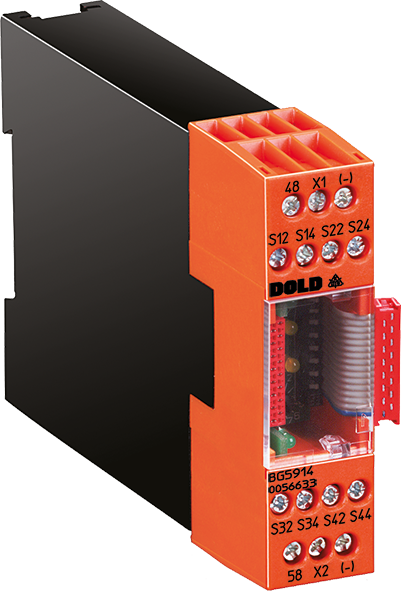

Dold BG5914.08/00MF0 DC24V, Input module, sku: 0056633

Realization of fail-safe control circuits for protection of people and machinery The modules BG 5914 and BH 5914 have been developed for applications in which numerous one-channel Emergency stop contacts have to be monitored.

• According to:
  - Performance Level (PL) d and category 2 to EN ISO 13849-1: 2008
  - SIL Claimed Level (SIL CL) 2 to IEC/EN 62061
  - Safety Integrity Level (SIL 2) to IEC/EN 61508
• Input module for realization of:
  - 8 E-STOP, single-channel, autostart
  - 6 E-STOP, single-channel, + 1 E-STOP, 2-channel, autostart
  - 5 E-STOP, single-channel, + 1 -STOP, 2-channel + 1 signal inut, autostart
  - 8 E-STOP, single-channel, manual start
  - 6 E-STOP, single-channel, + 1 E-STOP, 2-channel, manual start
  - 5 E-STOP, single-channel, + 1 E-STOP, 2-channel + 1 signal input, manual start
  - As an alternative to the 2-channel E-STOP, a light curtain
  (LC type 4) according to EN 61496-1 can be connected.
• Broken wire and short circuit monitoring function with error indication
• 2 semiconductor outputs per function module for status indication
• LEDs for status indication
• Width: 22.5 mm (BG 5914) or 45 mm (BH 5914)
