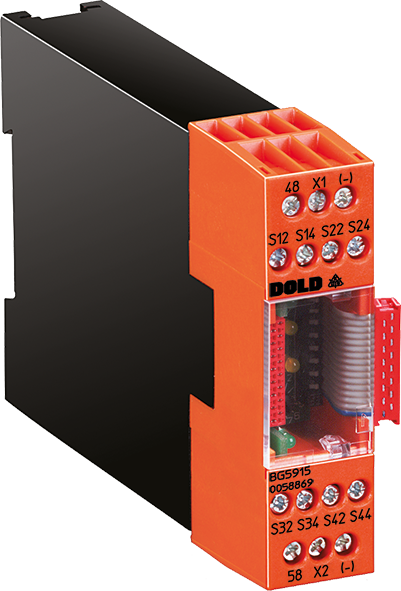

Dold BG5915.08/01MF0 DC24V, Input module, sku: 0058869

Realization of fail-safe control circuits for protection of people and machinery.

• According to:
  - Performance Level (PL) d and category 4 to EN ISO 13849-1: 2008
  - SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
  - Safety Integrity Level (SIL) 3 to IEC/EN 61508
• Input module with enabling inputs
• for connection of 2 channel
  - safety gates
  - e-stop buttons
  - light curtain (LC) Type 4
  - change over switch
  - enabling swtich
• Function combination and behaviour of enabling inputs selectable on
  rotary switches
• Broken wire and short circuit monitoring function with error indication
• 2 semiconductor outputs for status indication
• LEDs for status indication
• Width: 22.5 mm (BG 5915) or 45 mm (BH 5915)
