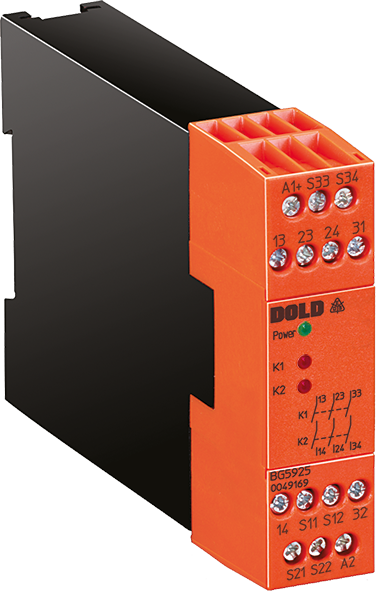

Dold BG5925.16/61 DC24V, Emergency stop module, sku: 0048654

Dold BG5925.16/61 DC24V, Emergency stop module, sku: 0048654

€264,90
€264,90
Sale Sold out
Taxes included.

📦 Ready for dispatch: 31.12.2025

SKU: 0048654

Protection of people and machinesEmergency stop circuits on machinesMonitoring of safety gates

Width: 22,5 mm
Cat. / PL acc. to EN ISO 13849-1: 4/e
SIL acc. to IEC/EN 62061: 3
Nominal voltage: DC, AC/DC
Suited as safety gate monitor: Yes
Thermal current Ith max.: 5 A
1- / 2-channel: 1, 2
Cross fault detection: Yes
Connection: Pluggable screw terminals
Output contacts max.: 4 NO contacts
Approvals: UL
Type: BG 5925
  • According to
    - PL e and category 4 to EN ISO 13849-1
    - maximum SIL 3 to EN IEC 62061
    - SIL 3 to EN 61508
  • Output: max. 3 NO contacts, see contacts
  • Single and 2-channel operation
  • Line fault detection on On-button
  • Manual restart or automatic restart, switch S2
  • With or without cross fault monitoring in the E-stop loop, switch S1
  • LED indicator for channel 1 and 2 and Power
  • Removable terminal strips
  • Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
  • Width 22.5 mm
