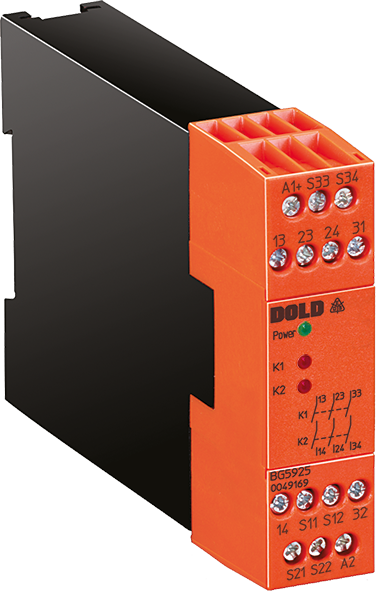

Dold BG5925.22/60 AC/DC24V, Emergency stop module, sku: 0056310
Dold BG5925.22/60 AC/DC24V, Emergency stop module, sku: 0056310
Regular price
€276,75
Regular price
Sale price
€276,75
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0056310
Protection of people and machinesEmergency stop circuits on machinesMonitoring of safety gates
| Width: | 22,5 mm |
| Cat. / PL acc. to EN ISO 13849-1: | 4/e |
| SIL acc. to IEC/EN 62061: | 3 |
| Nominal voltage: | DC, AC/DC |
| Suited as safety gate monitor: | Yes |
| Thermal current Ith max.: | 5 A |
| 1- / 2-channel: | 1, 2 |
| Cross fault detection: | Yes |
| Connection: | Pluggable screw terminals |
| Output contacts max.: | 4 NO contacts |
| Approvals: | UL |
| Type: | BG 5925 |
- According to
- PL e and category 4 to EN ISO 13849-1
- maximum SIL 3 to EN IEC 62061
- SIL 3 to EN 61508 - Output: max. 3 NO contacts, see contacts
- Single and 2-channel operation
- Line fault detection on On-button
- Manual restart or automatic restart, switch S2
- With or without cross fault monitoring in the E-stop loop, switch S1
- LED indicator for channel 1 and 2 and Power
- Removable terminal strips
- Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
- Width 22.5 mm
