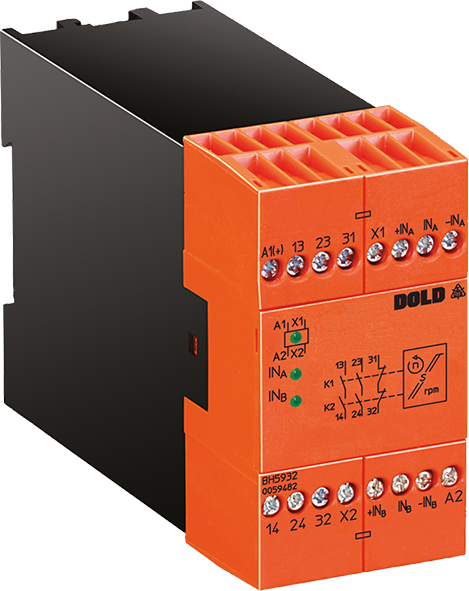

Dold BH5932.22/113/61 ACDC24V10-20000IPM, Speed or standstill monitor, sku: 0064021

Dold BH5932.22/113/61 ACDC24V10-20000IPM, Speed or standstill monitor, sku: 0064021

€462,15
€462,15
Sale Sold out
Taxes included.

📦 Ready for dispatch: 06.12.2025

SKU: 0064021

The speed monitor BH 5932 provides safe monitoring of motors and rotating equipment. It is used in machines and plants where machine movements or moving parts can be a danger to men and machine.

Width: 45 mm
Classification: For initiators
Cat. / PL acc. to EN ISO 13849-1: 3/e
SIL acc. to IEC/EN 62061: 3
Nominal voltage: AC, AC/DC
Thermal current Ith max.: 4 A
1- / 2-channel: 2
Approvals: UL
Forcibly guided output contacts max.: 2 NO contacts, 1 NC contact
Type: BH 5932
  • According to
    - Up to PL e and category 3 according to EN ISO 13849-1
    - Up to SIL 3 according to EN 61508 and EN 61511
  • 2-channel input
  • To monitor rotation and linear movement
  • PNP proximity sensor inputs
  • Optionally inputs for NPN proximity sensors
  • Monitoring of connected sensor
  • Fixed setting, adjustable as option
  • Energized when speed is under setting value
  • LED indication
  • Feedback circuit X1 - X2 to monitor external contacts
  • Forcibly guided contacts
  • 2 NO, 1 NC contact
  • Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
  • Width 45 mm
