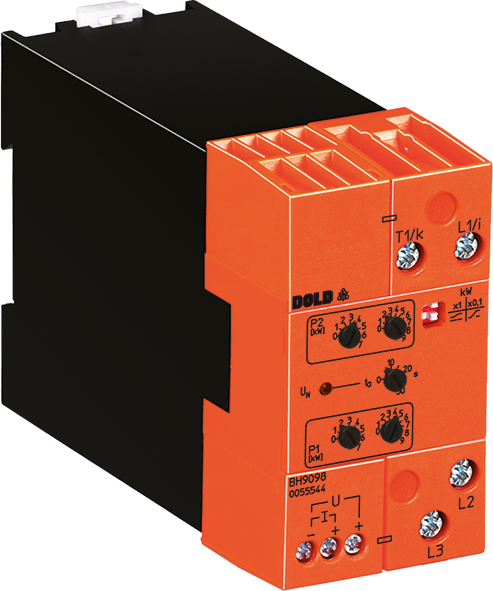

Dold BH9098.90/010 AC35-250V AC24A, Motor Load Transmitter, sku: 0055545

The BH 9098 load transformer measures the power consumption of electrical loads and converts them into standardised analogue voltage and current values. Early detection of impending failures and preventive maintenance prevent costly damage and as a user you benefit from the operational safety and high availability of your system.

• According to IEC/EN 60255-1
• Measurement: Effective power
• Adjustment of P1 and P2 on absolute scale
• Adjustable start-up time delay ta
• Up to 40 A without external current transformer
• As option for single phase loads
• LED indicators
• Width 45 mm
