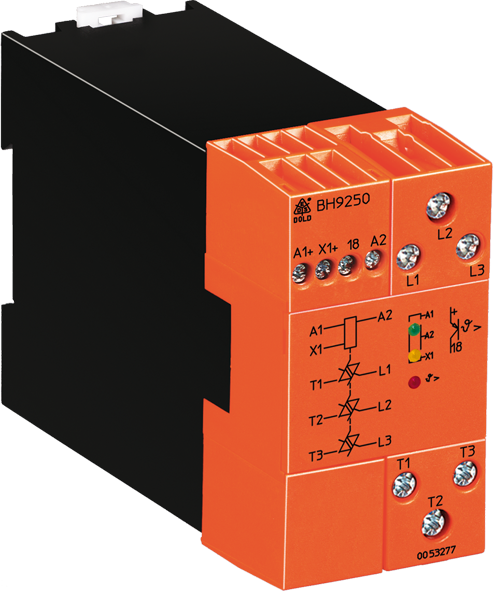

Dold BH9250.01/001 UH=DC24V AC50A, Solid-state contactor, sku: 0053386

Fast and noiseless switching of: Heating elements, Motors, Valves, Lighting.

• According to IEC/EN 60 947-4-2, IEC/EN 60 947-4-3
• 1-, 2- and 3-pole models
• Load current up to 50 A
• For AC load up to 480 V
• Switching at zero crossing
• Protected by varistors
• As option temperature protection of the power semiconductors
  with monitoring output
• Mounting on DIN-rail
• As option with control input X1 with low current consumption
  e.g. to be controlled by a PLC
• As option up to 3 separate semiconductor contactors in one unit
• BF 9250: width 22.5 mm, 45 mm and 90 mm
  BH 9250: width 45 mm, 67.5 mm and 112.5 mm
