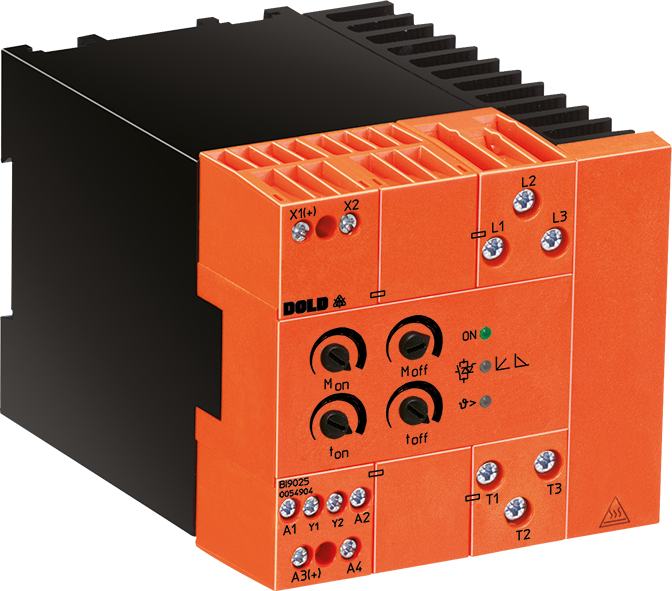

Dold BI9025 3AC200-480V 50/60HZ 15KW, Softstarter, sku: 0054904

Softstarters are electronic devices designed to enable 1-phase or 3-phase induction motors to start smoothly. The devices slowly ramps up the current on two phases, therefore allowing the motor torque to build up slowly. This reduces the mechanical stress on the machine and prevents damage to conveyed material. When the motor is up to full speed the semiconcutors in the device are bridged to prevent internal power losses and heat build up. In addition the device allows a softstop function prolonging the stop time of the motor, preventing high counter torques from abruptly stopping the motor.

• Softstart and softstop function
• 2-phase control
• For motors up to 15 kW at 3 AC 400 V
• Acceleration and deceleration time resp. starting and
  switch-off torque are separately adjustable
• Wide input voltage range of the power semiconductors
• Galvanic isolation of control input with wide voltage range
  up to AC/DC 480 V control input
• 3 auxiliary voltages at the device up to AC 230 V
• Integrated overtemperature monitoring
• LED indication
• According to EN 60 947-4-2
• 90 mm width
