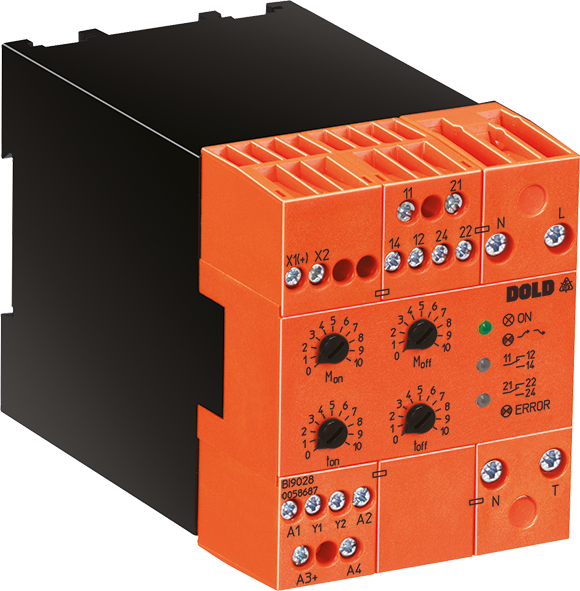

Dold BI9028.38/900 AC100-480V UH AC230V, Softstarter for 1-phase motors, sku: 0058687
Dold BI9028.38/900 AC100-480V UH AC230V, Softstarter for 1-phase motors, sku: 0058687
Regular price
€504,88
Regular price
Sale price
€504,88
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0058687
Motor with gear, belt or chain driveFans, pumps, conveyor systems, compressorsWoodworking machines, centrifugesPacking machines, door-drives
| Widths: | 90 mm |
| Load voltage up to: | AC 230 V |
| For single-phase motors, 230 V up to: | 5 kW |
| Auxiliary voltage required: | Yes |
| Signalling output: | Yes |
| Extra functions: | Temperature monitoring, Mains monitoring |
| Type: | BI 9028/900 |
- Softstart and softstop function
- According to IEC/EN 60947-4-2
- 1-phase motor control
- For motors up to 5 kW at AC 230 V
- Separate settings for start and deceleration time, as well as starting and deceleration torque
- Galvanic isolation of control input with wide voltage range up to AC/DC 230 V
- 3 auxiliary voltages up to 230 V
- Phase failure detection
- 2 relay outputs for indication of status and fault
- LED-indication
- 90 mm width
