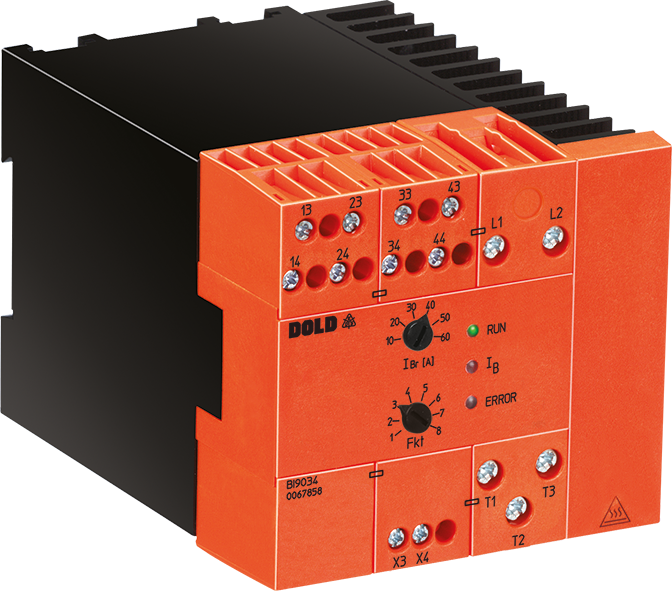

Dold BI9034/800 60A AC50/60HZ 400V 1-10S, Motor brake relay, sku: 0067858
Dold BI9034/800 60A AC50/60HZ 400V 1-10S, Motor brake relay, sku: 0067858
Regular price
€694,44
Regular price
Sale price
€694,44
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0067858
The BI 9034 electronic braking relay enables the wear-free braking of asynchronous motors. The braking relay is used for drives that must be reliably braked for safety and functional reasons. An integrated standstill detection switches off the braking current after the motor has come to a standstill.
| Width: | 90 mm |
| Braking current adjustable up to max.: | 60 A |
| Braking time adjustable up to max.: | 31 s |
| Automatic standstill monitoring: | Yes |
| Signalling output: | Yes |
| Temperature monitoring: | Yes |
| Type: | BI 9034 |
- According to IEC/EN 60947-4-2
- For all single and 3-phase asynchronous motors
- DC-brake with one way rectification up to max. 60 A
- Controlled by microcontroller
- Easily fitted to existing installations
- Wear free and maintenance free
- Integrated braking contactor
- DIN-rail mounting
- Adjustable braking current up to max. 60 A (controlled current)
- With integrated star-delta starting function
- With automatic standstill detection
- Variant /800 with short circuit contactor control for reduced brake delay time
- 90 mm Width
