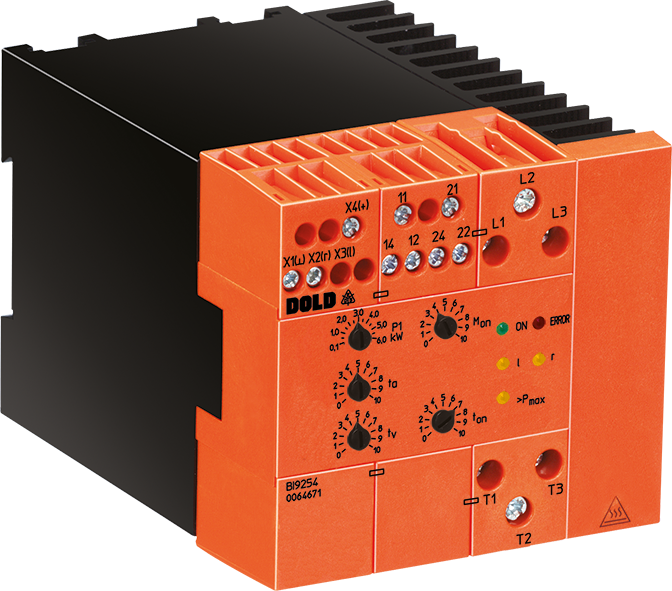

Dold BI9254.38/61 3AC400V 50/60Hz 12A, Reversing contactor with softstart and active power monitoring, sku: 0064671
Dold BI9254.38/61 3AC400V 50/60Hz 12A, Reversing contactor with softstart and active power monitoring, sku: 0064671
Regular price
€781,44
Regular price
Sale price
€781,44
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0064671
Reversing operation for door and gate controls, bridge drives and lifting applications with monitoring of blockageConveyor systems with monitoring of blockageActuating drives in process controls with blockage monitoring
| Widths: | 90 mm |
| Number of poles: | 3-pole |
| Load current up to: | 12 A |
| Load voltage up to: | 3AC 400 V |
| On/Off Input Control: | DC |
| Signalling output: | Yes |
| Temperature monitoring: | Yes |
| Approvals: | UL |
| Enclosure design: | Switch cabinet |
| Type: | BI 9254 |
- According to IEC/EN 60947-1, IEC/EN 60947-4-2
- To reverse 3 phase motors
- Electrical interlocking of both directions
- 2-phase softstart
- Active power monitoring after softstart
- Temperature monitoring of power semiconductors
- LED indicator
- Internal auxiliary voltage are made from phase voltage
- Galvanic separation of control circuit and power circuit
- Space and cost saving with 3 functions in one compact unit
- Reducing of wiring and wiring failure
- Width 90 mm
