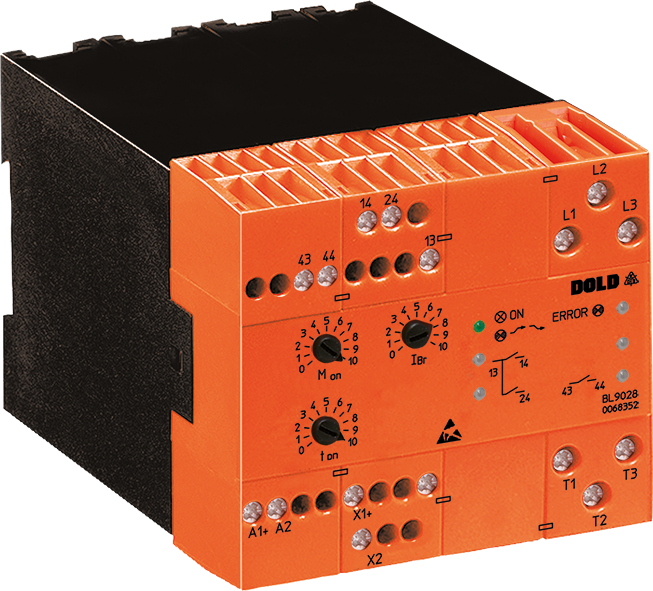

Dold BL9028.03 3AC200-480V UH=DC24V 11kW, Softstarter with braking function, sku: 0068352

Softstarters are electronic devices designed to enable 1-phase or 3-phase induction motors to start smoothly. By means of internal current monitoring we realise different protective functions, when stalling the motor or during heavy duty starting. The semiconductors are bridged after softstart by relay contacts. This reduces power dissipation and heating. The device parameters are adjusted using potentiometers. LEDs indicate the status of the device.

• According to IEC/EN 60947-4-2
• 2-phase motor control
• For motors up to 11 kW at 3 AC 400 V
• Separate settings for start and brake time, as well as
  starting and braking torque
• No braking contactor necessary
• Function test of brake circuit before softstart
• With automatic standstill detection
• Current monitoring
  - to protect the power semiconductors
  - for device protection at stalled motor
• Maintenance- and wearfree
• Auxiliary DC 24 V
• Monitors undervoltage and phase sequence
• With input to detect motor temperature via PTC (variant /_1_)
• 3 relay outputs for indicaiton of status and fault with LED-indication
• Width: 112.5 mm
