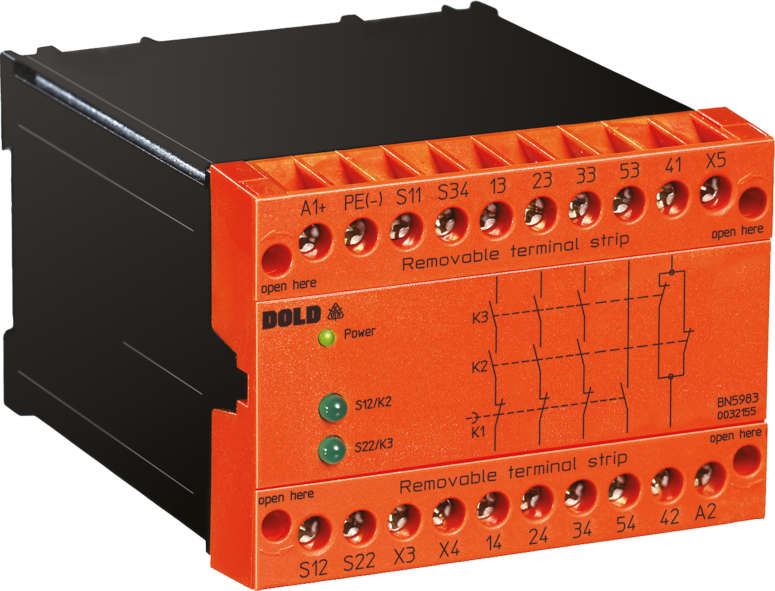

Dold BN5983.53/104 AC230V 50/60HZ, Emergency stop module, sku: 0038446
Dold BN5983.53/104 AC230V 50/60HZ, Emergency stop module, sku: 0038446
Regular price
€534,05
Regular price
Sale price
€534,05
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0038446
Protection of people and machinesEmergency-stop circuits on machinesMonitoring of safety gates
| Width: | 100 mm |
| Cat. / PL acc. to EN ISO 13849-1: | 4/e |
| SIL acc. to IEC/EN 62061: | 3 |
| Nominal voltage: | AC, DC |
| Suited as safety gate monitor: | Yes |
| Thermal current Ith max.: | 10 A |
| 1- / 2-channel: | 1, 2 |
| Connection: | Pluggable screw terminals |
| Output contacts max.: | 1 NC contact, 3 NO contacts |
| Approvals: | UL-Recognized |
| Type: | BN 5983 |
- According to
- Performance Level (PL) e and category 4 to EN ISO 13849-1
- SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
- Safety Integrity Level (SIL) 3 to IEC/EN 61508 - Output: 3 NO, 1 NC contacts for AC 400 V
- Optionally gold-plated contacts to switch small loads (input for PLC)
- 1-channel or 2-channel connection
- LED displays for channels 1 and 2
- Feedback circuit X3 - X4 for monitoring external contactors
- Removable terminal strips
- Overvoltage and short circuit protection
- Width 100 mm
