Dold CB3057.11 AC220-240V, Interface relay, sku: 0045913
Dold CB3057.11 AC220-240V, Interface relay, sku: 0045913
Regular price
€87,33
Regular price
Sale price
€87,33
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0045913

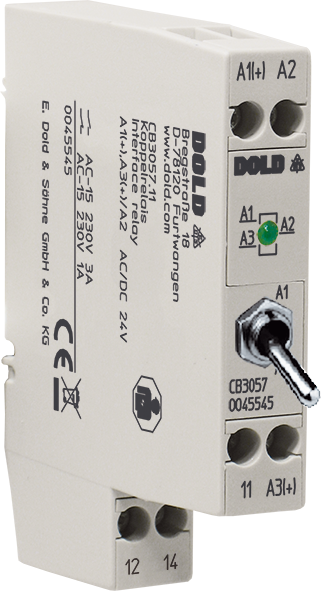

The interface module CB 3057 is suitable as a link between control and main circuit with integrated selector switch. It is usable for manual operation during system failure.
| Width: | 11,5 mm |
| Nominal voltage: | AC, AC/DC |
| Initiator triggering: | Yes |
| Thermal current Ith max.: | 5 A |
| Output contacts max.: | 1 C/O contact |
| Enclosure design: | Switch cabinet |
| Type: | CB 3057 |
- According to IEC/EN 60947-5-1, IEC/EN 61810-1
- With service switch Auto/On/Off
- Input AC/DC 24 V
- 1 changeover contact 5 A
- LED indicator
- Width 11.5 mm
